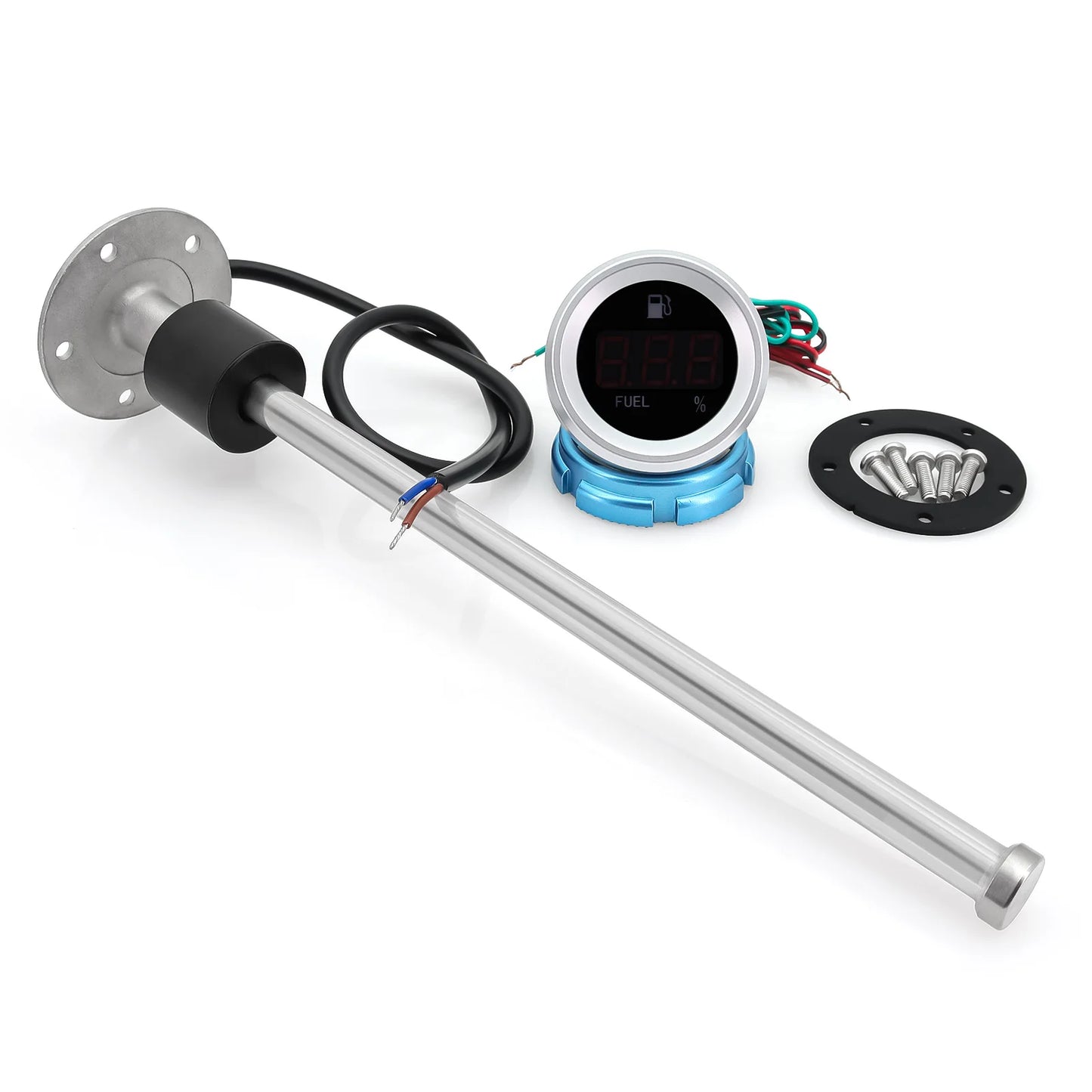

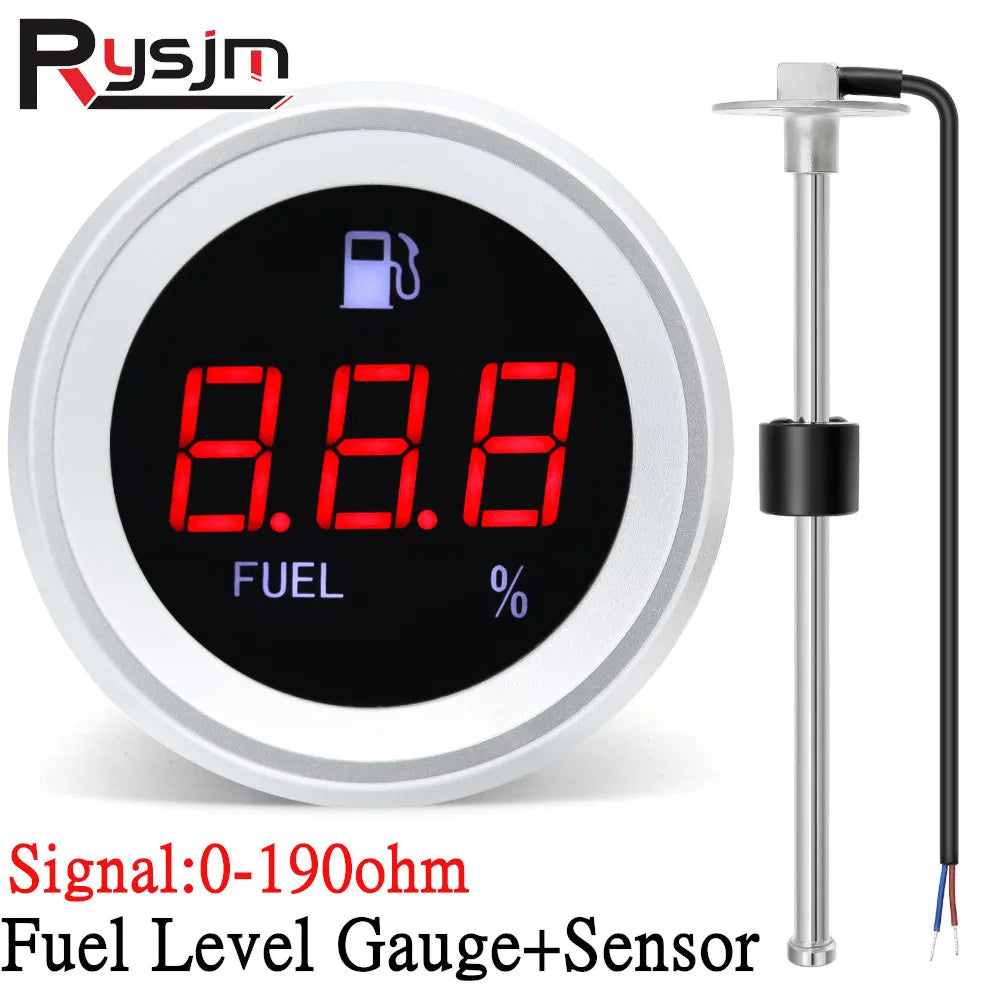

Digital Boat Car Fuel Level Gauge Meter with Flashing Alarm With 0-190ohm Fuel Level Sensor 100~550mm Fuel Sender Unit 12V/24V

PLEASE NOTE

We have two options
Option 1:1X Fuel Level Gauge
Option 2: 1X Fuel level gauge+Sensor
Please confirm your order after payment,thank you

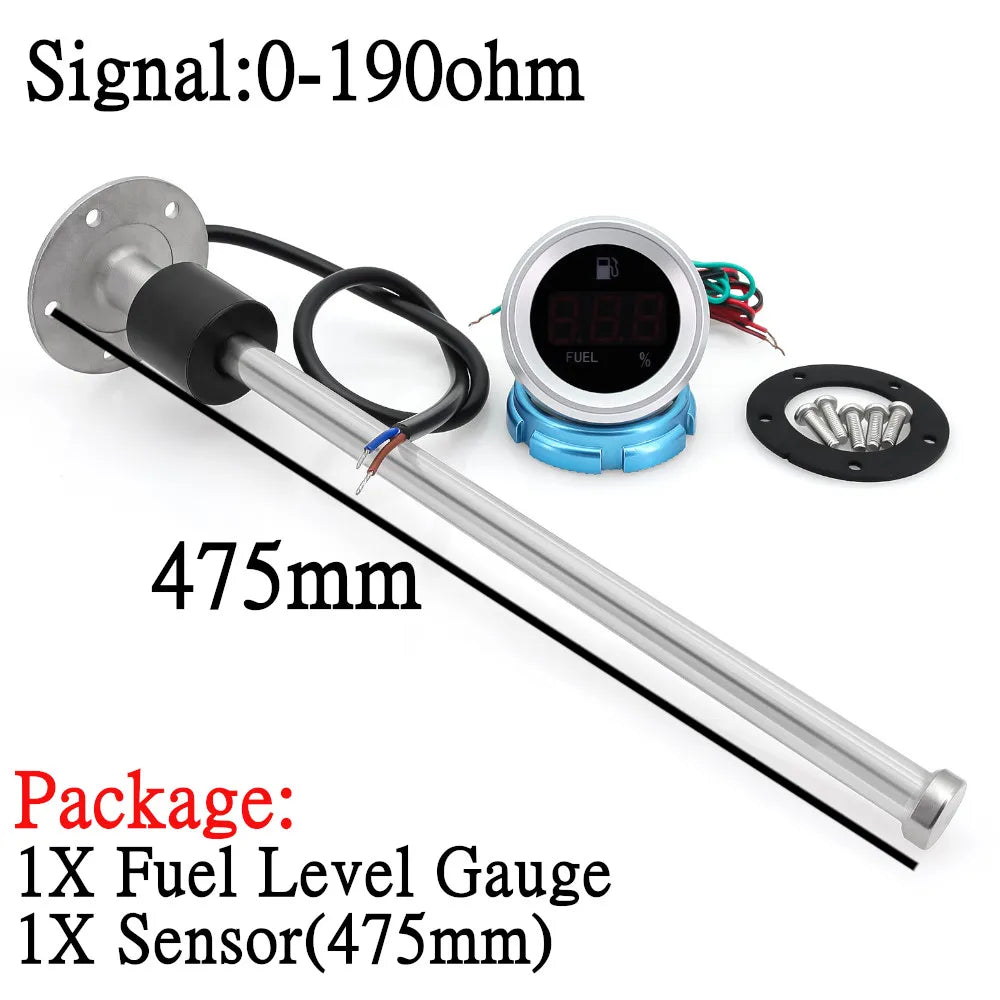

Package 1

1X Fuel Level Gague

Package 2

1X Fuel Level Gauge

1X Fuel Level Sensor

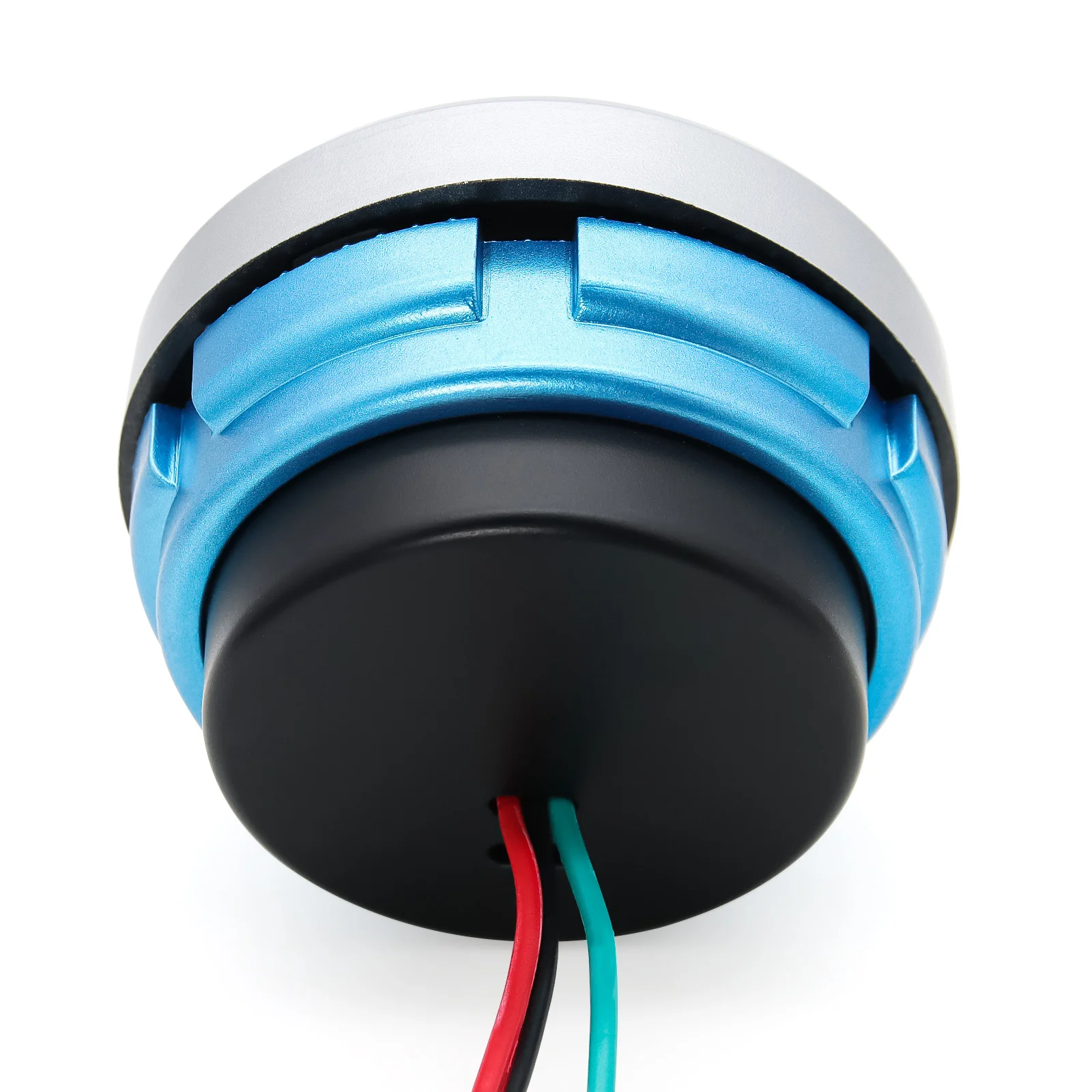

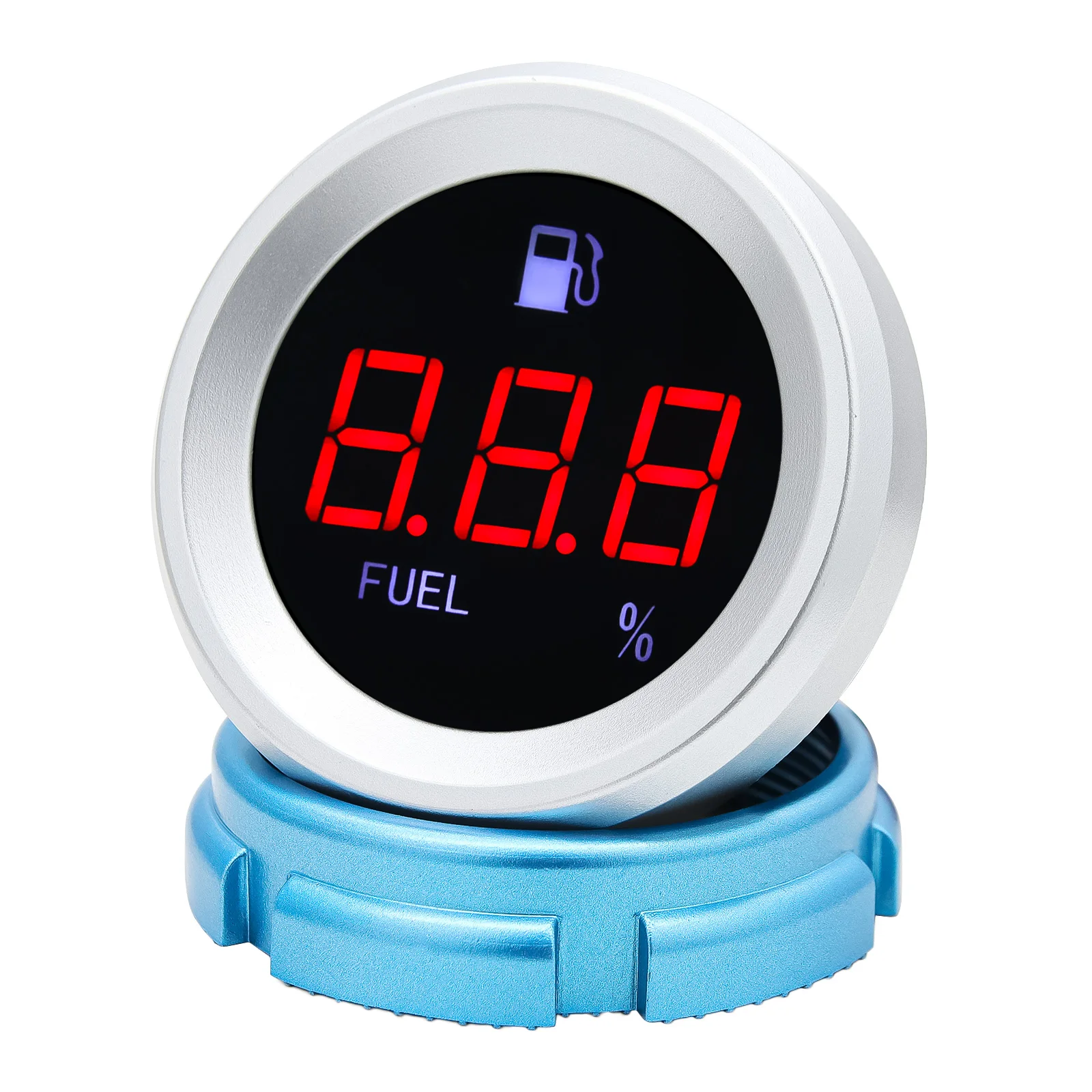

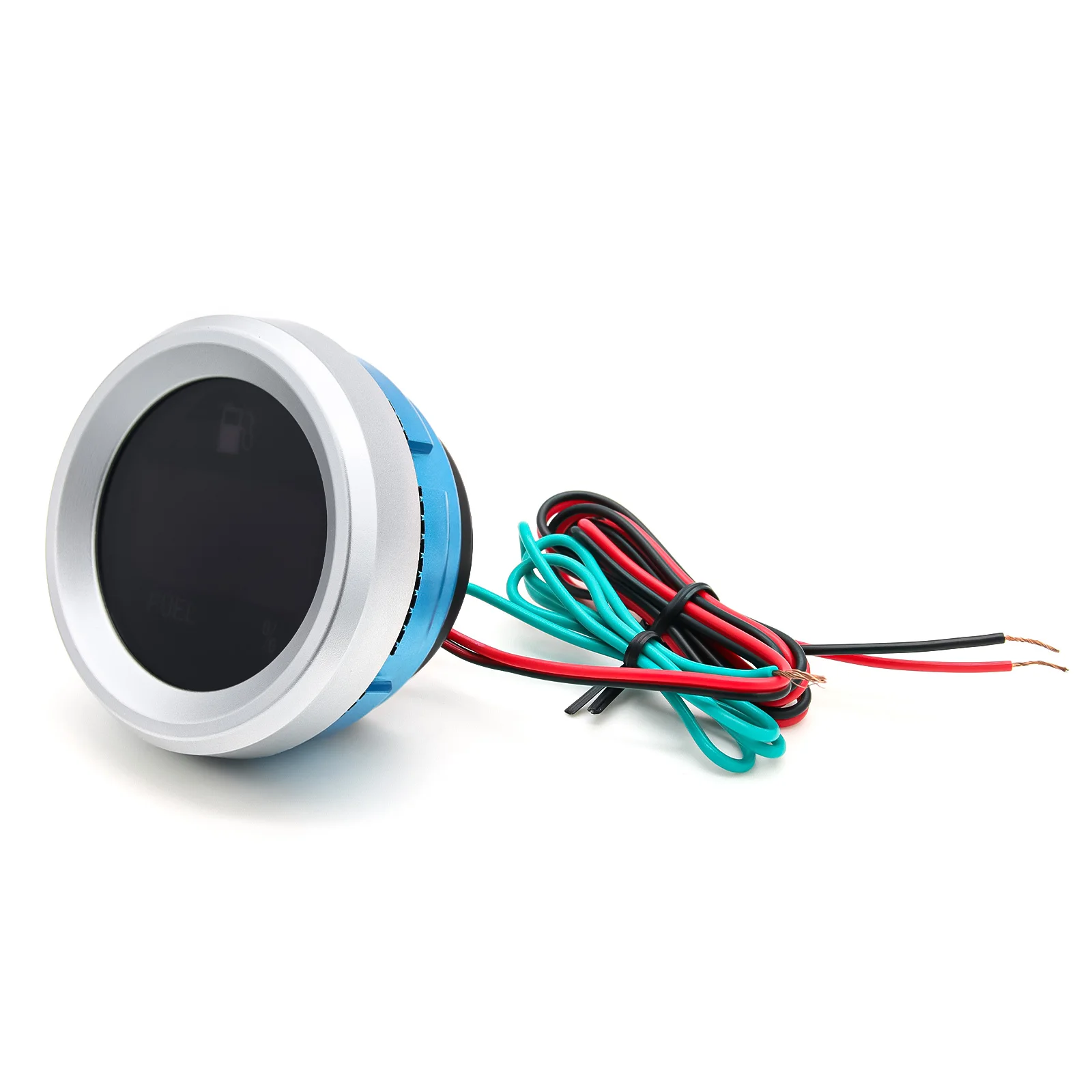

Gauge Specifications:

- Widely used car, truck, yacht, Boat and marine ect.

- Self-calibration at start-up ensures the meter operates optimally, smart and effortlessly.

- LED digital display, real-time measurement of oil level. Numbers and percentages show the amount of oil. Even at night, you can directly understand the oil level.

- Accurately measure water temperature. Accurately understand water temperature conditions. Friendly protection of your engine.

- Working voltage: 9-35v;

- Test range: 0-100%;

- When the pressure value is less than or equal to 10%, the digital tube will flash and alarm;

- Adapter sensor resistance: 0-190 ohm.

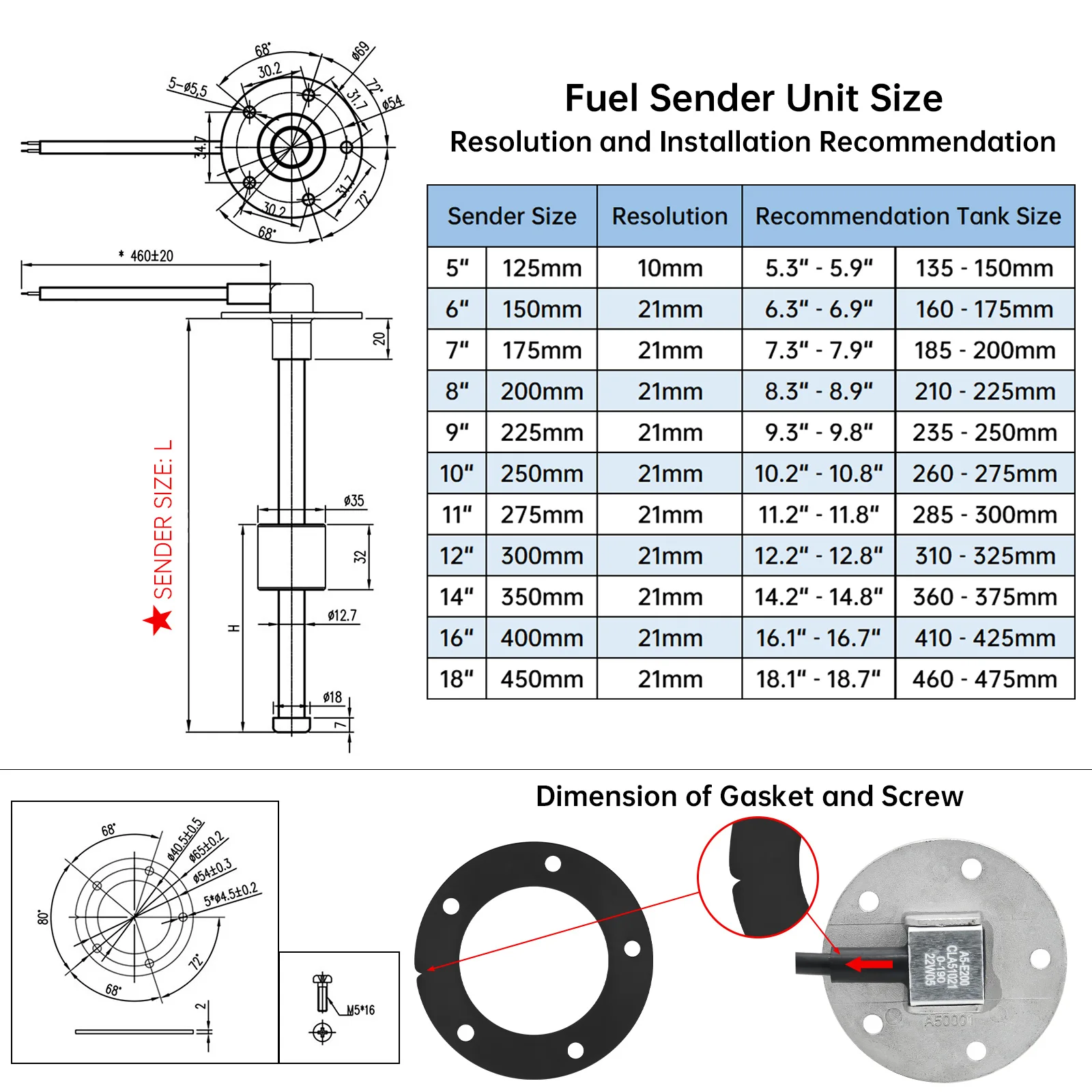

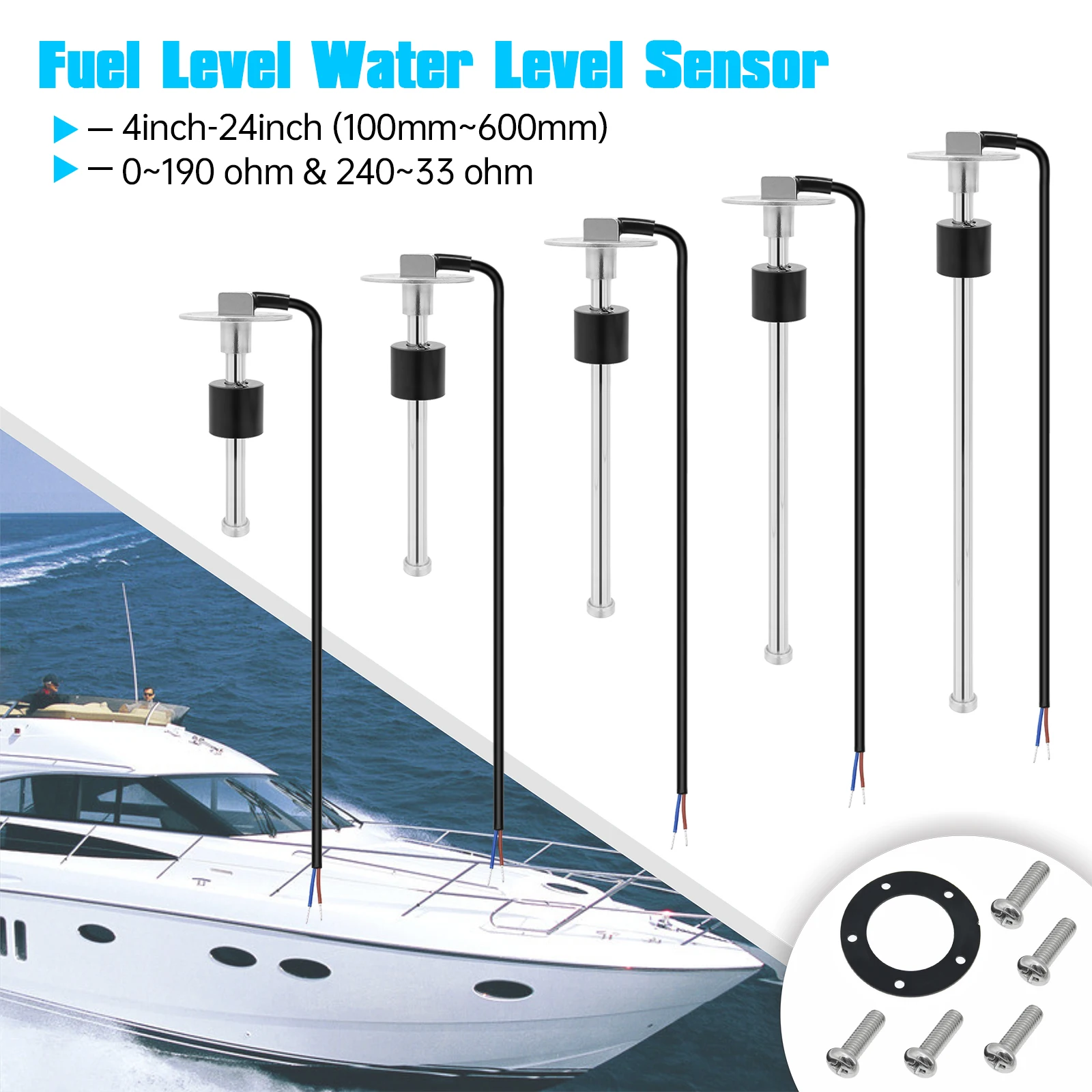

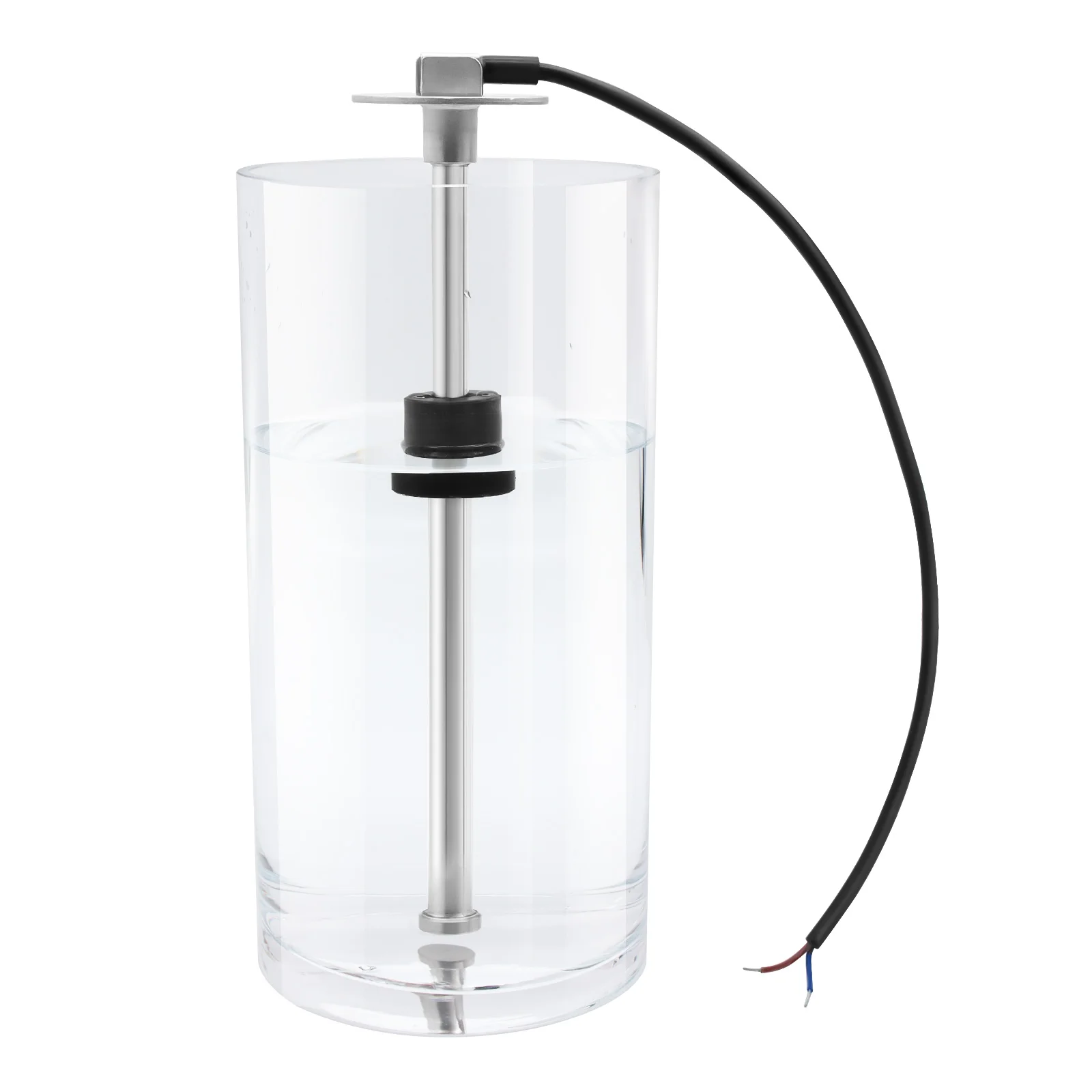

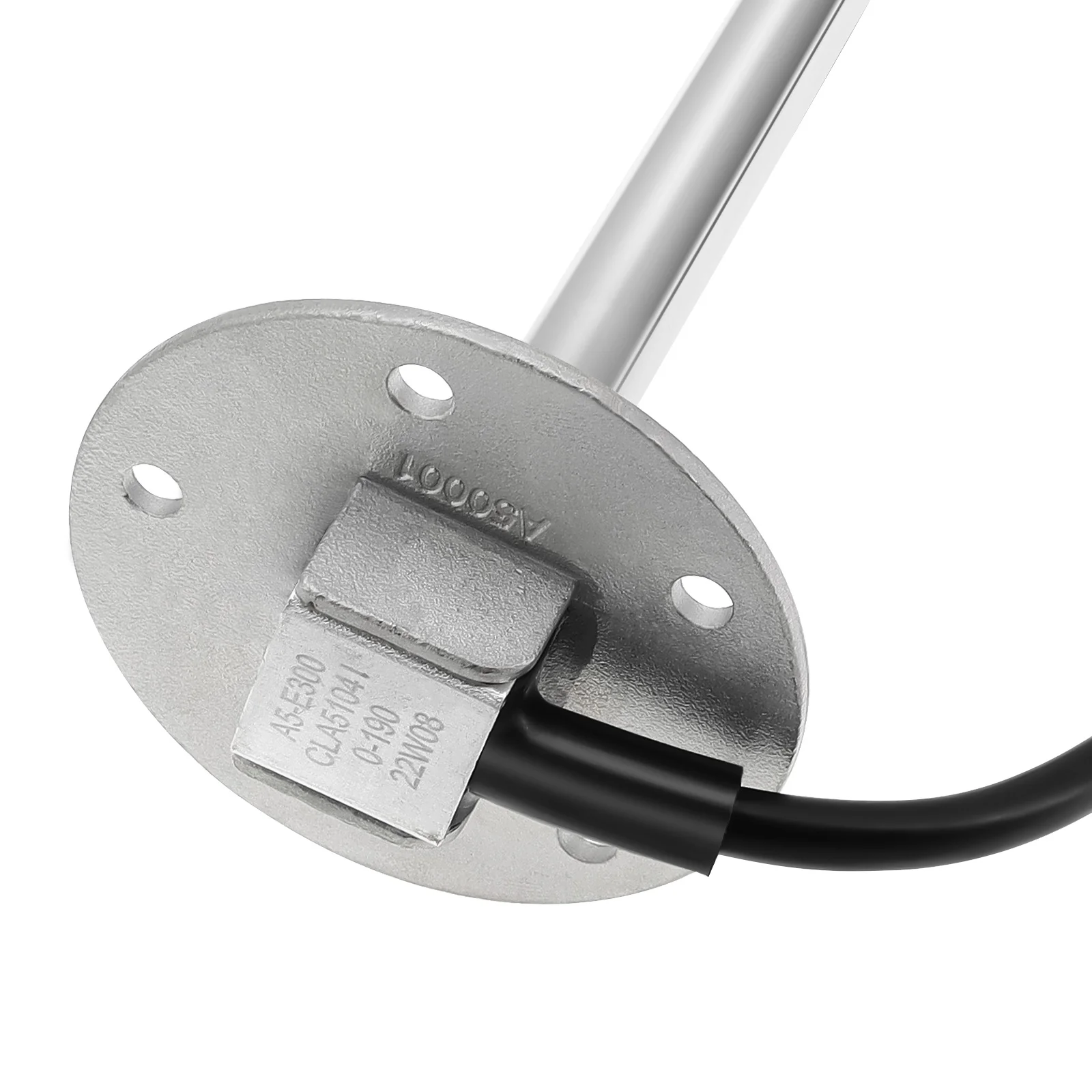

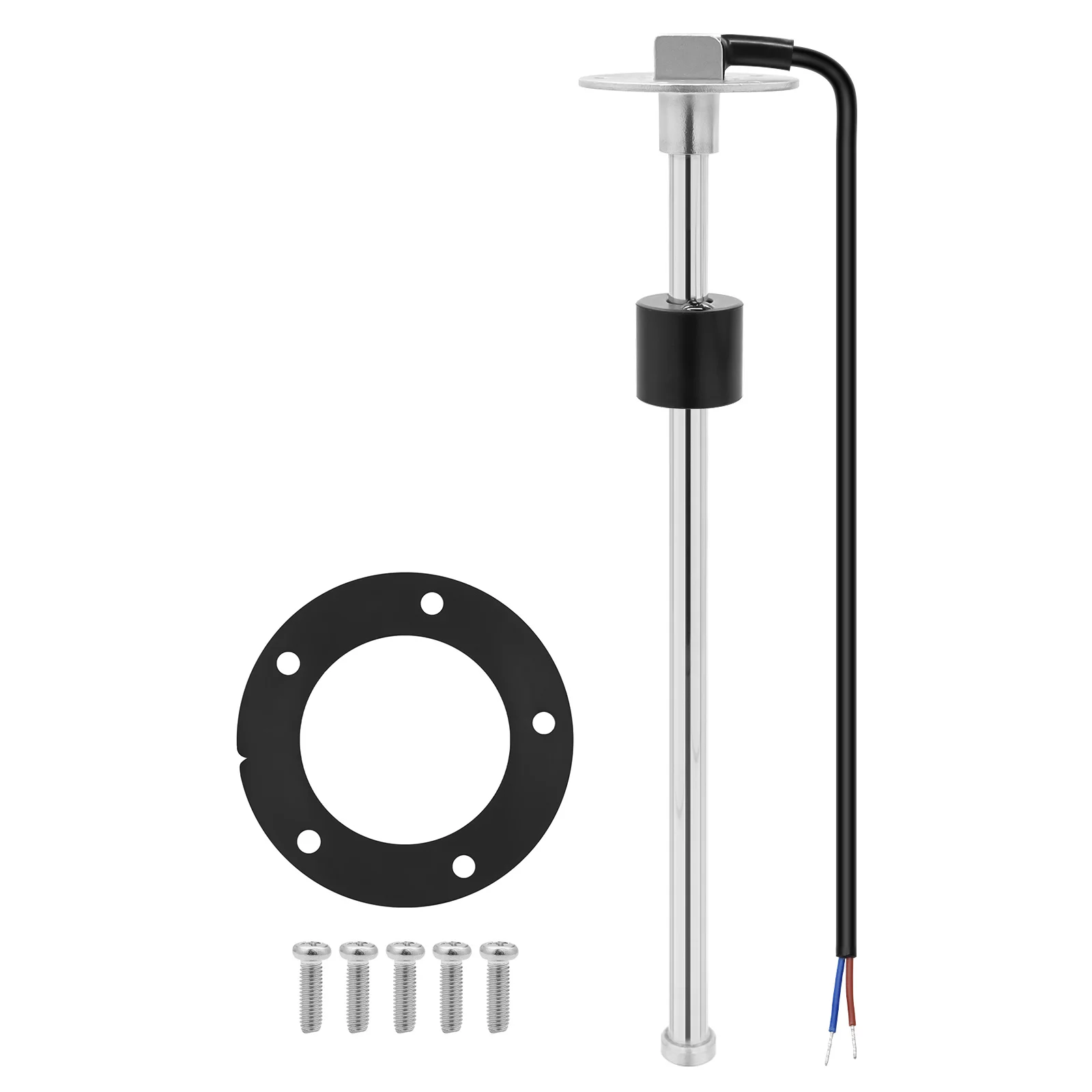

Sensor Specifications:

- Protection ank: IP67

- Resolution range: 21 mm

- Assembly: SAE standard 5 holes

- Rated current for alarm switch: 500mA

- Operating temperatures: - 40 to 85 Celsius

- Fit for Fuel Level Gauge and Water Level Gauge

- Sensor Length :100MM~1500MM

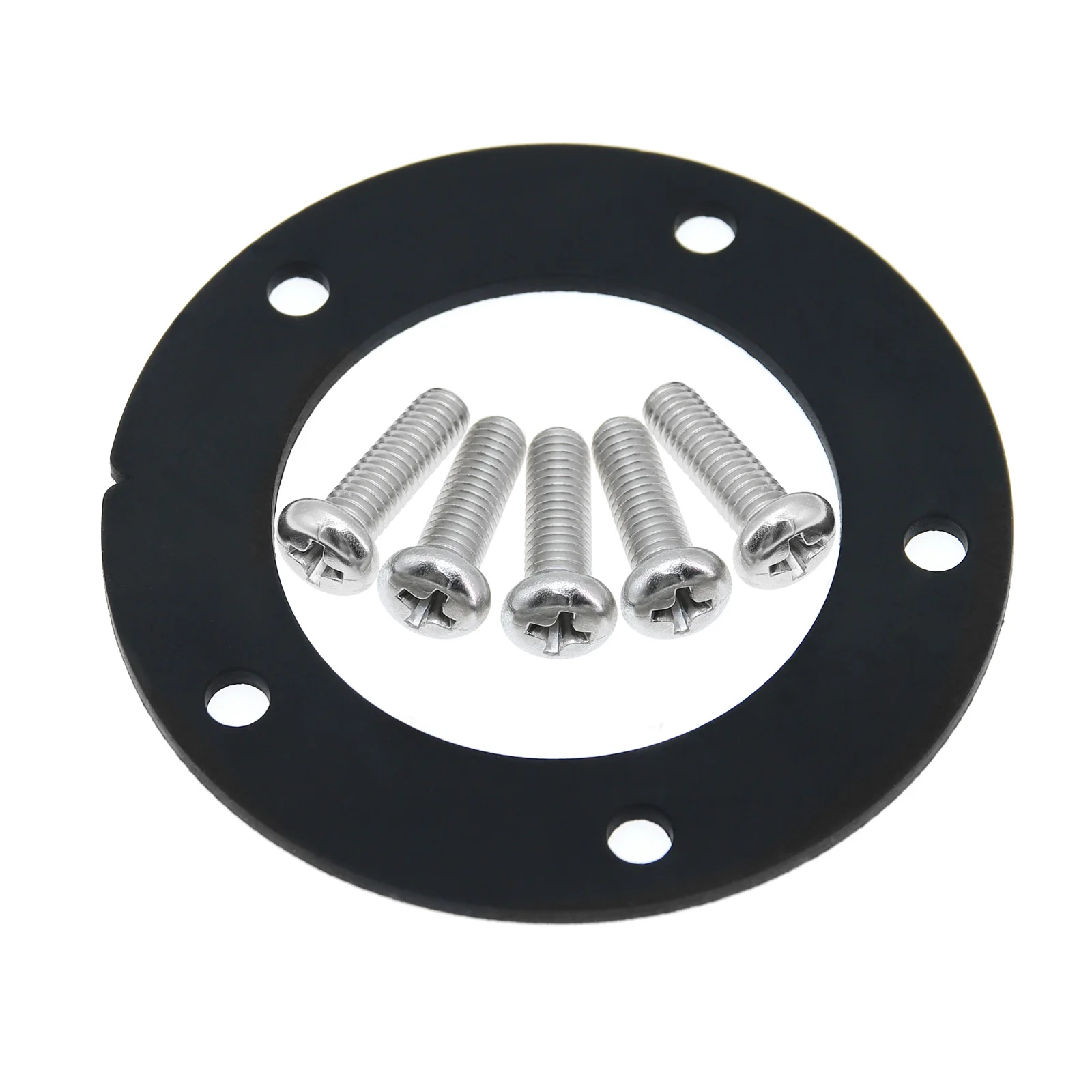

- Mounting: 5 pieces of M5 screws and 2 mm thick gasket

- Output signal: 0~190 ohm (Standard European),

Sensor Connection:

Blue wire: connect the ground wire
Brown wire: connect the gauge signal wire

☆Empty oil level 0 ohm
★Full oil level 190 ohm

Wholesale and drop shipping are both welcomed:

* For wholesale, we will offer the discount or free express shipping which only takes 3-7 days to arrive.

* For drop shipping, We could send the goods to your customers directly and won't leave information about us if youd like to.

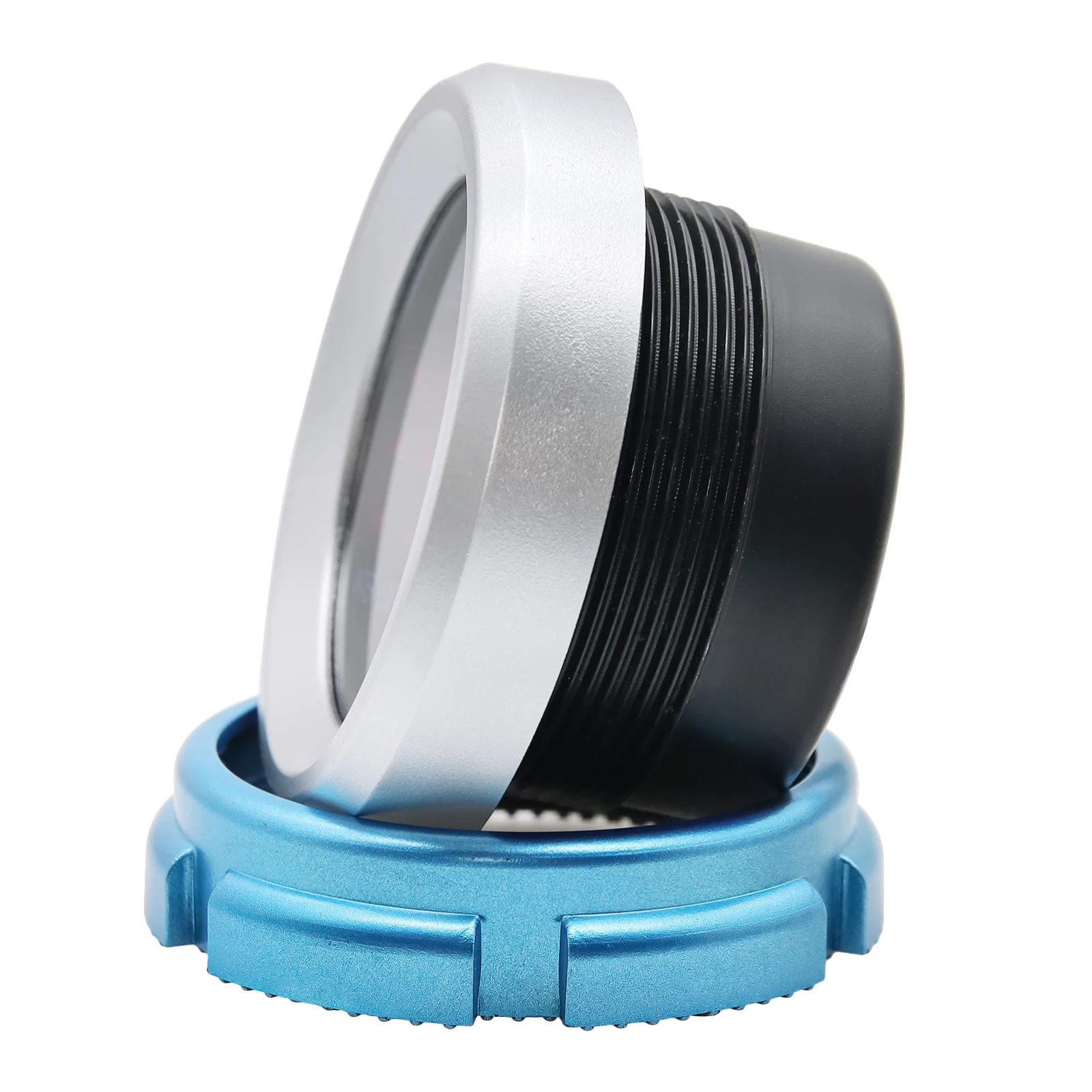

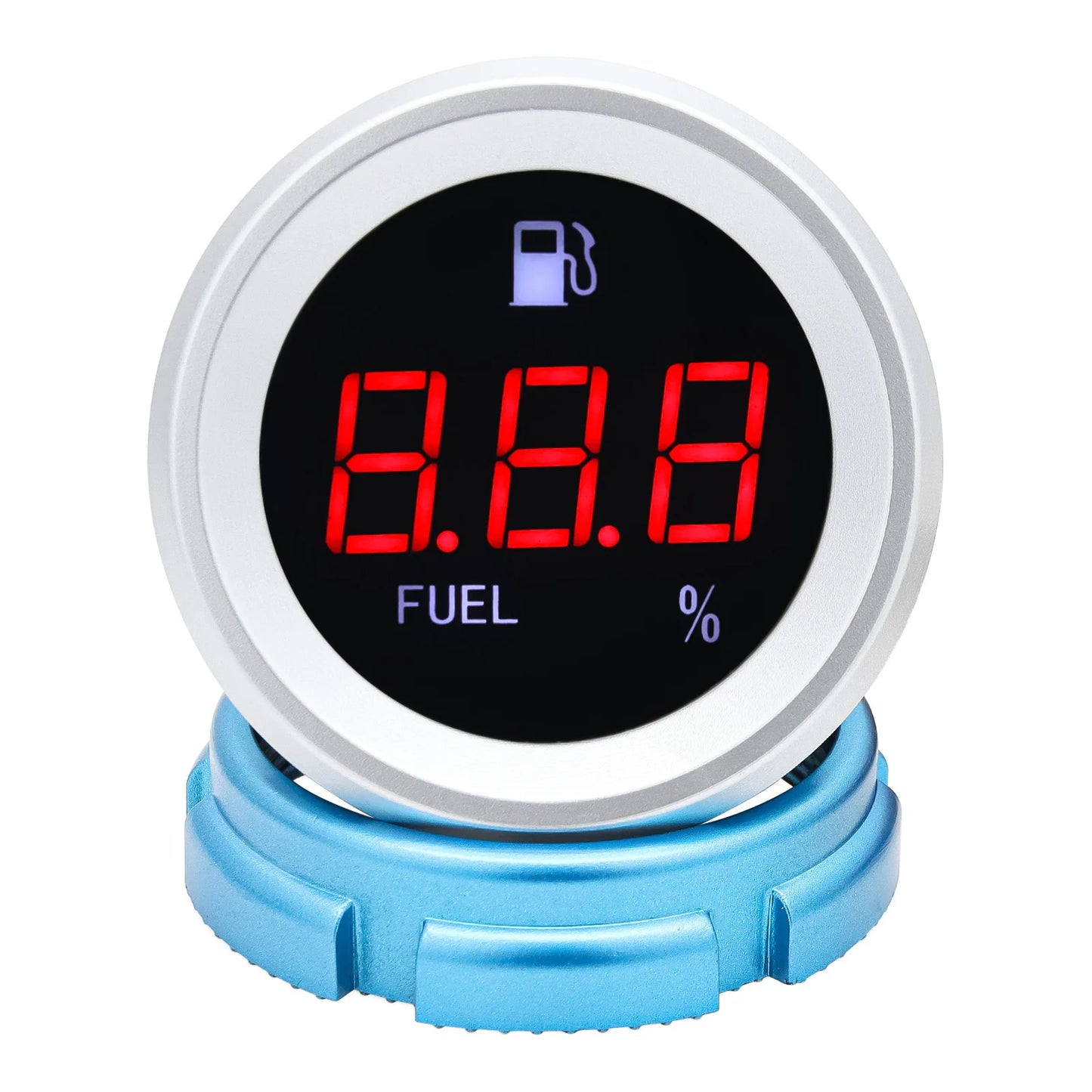

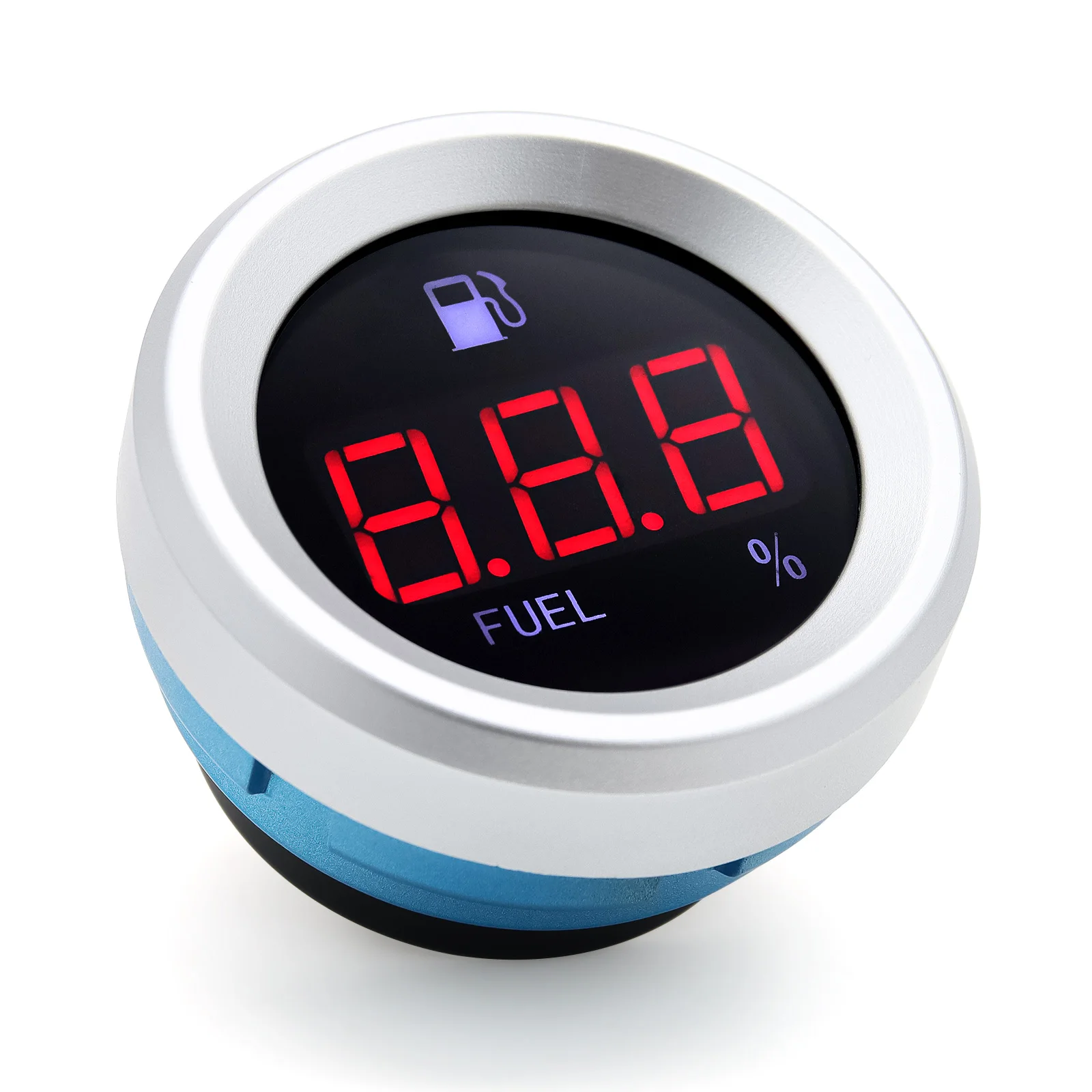

Fuel Level Gauge

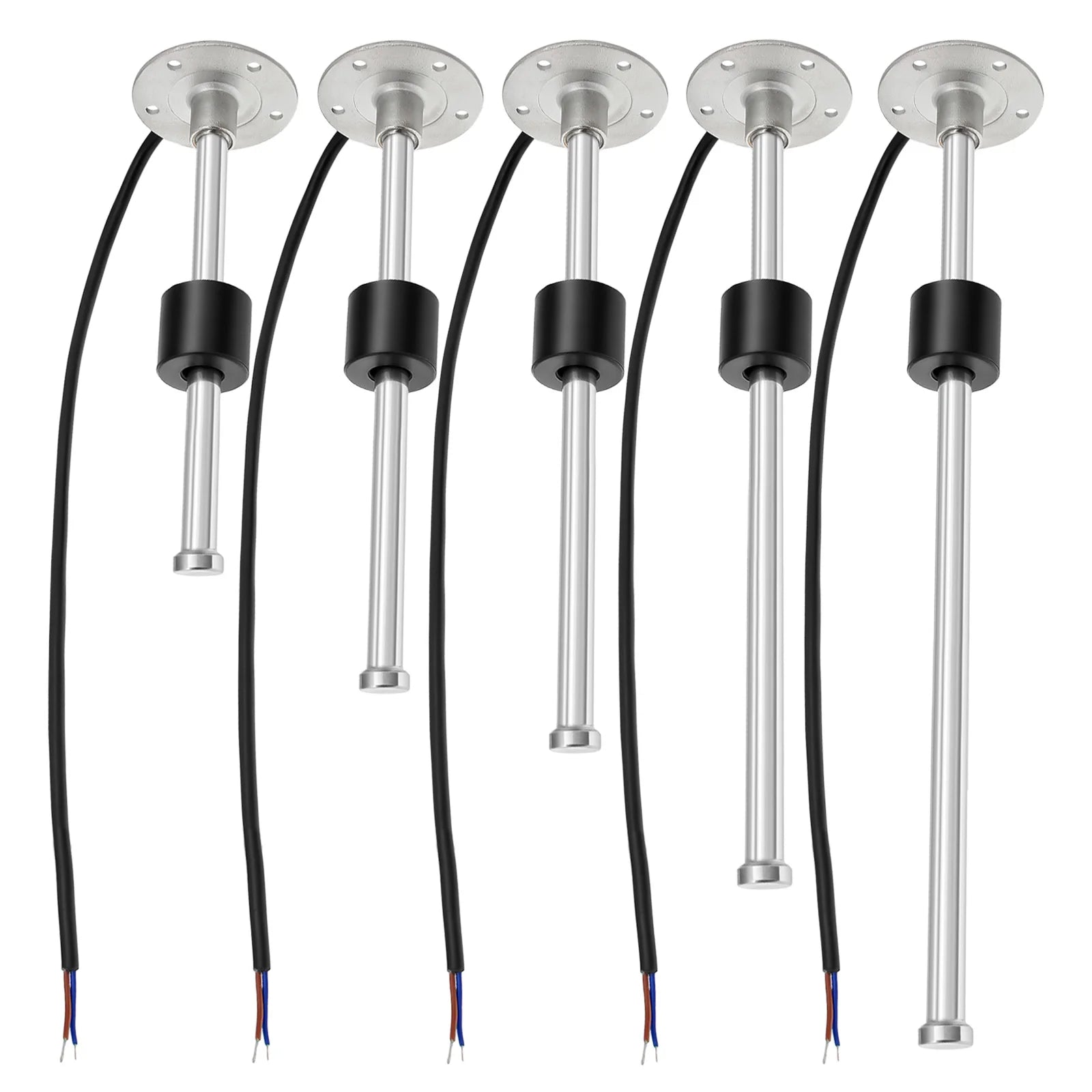

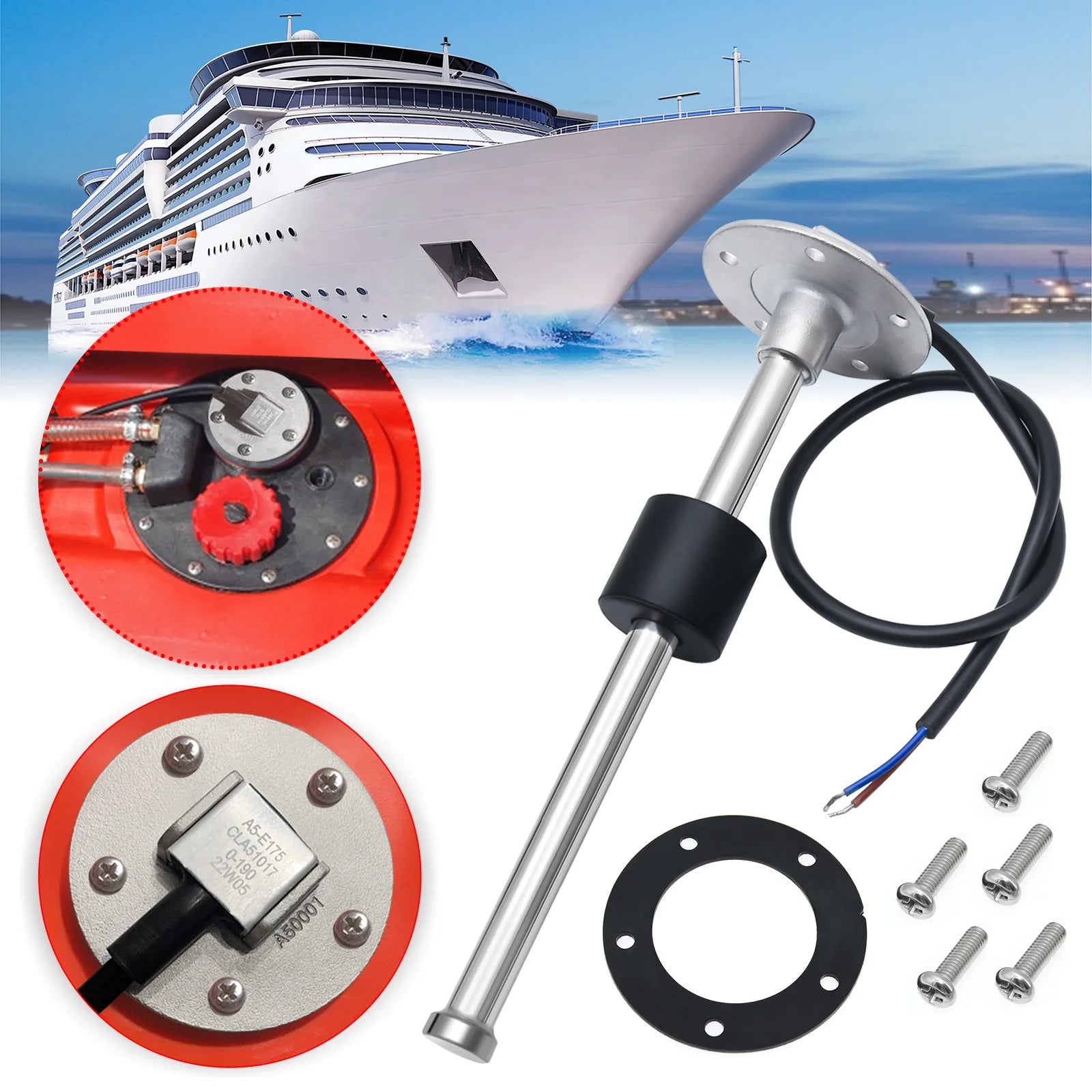

Fuel level sensor
