JDiag Topdiag P200 Car Electrical Circuit Power Probe Analyzer

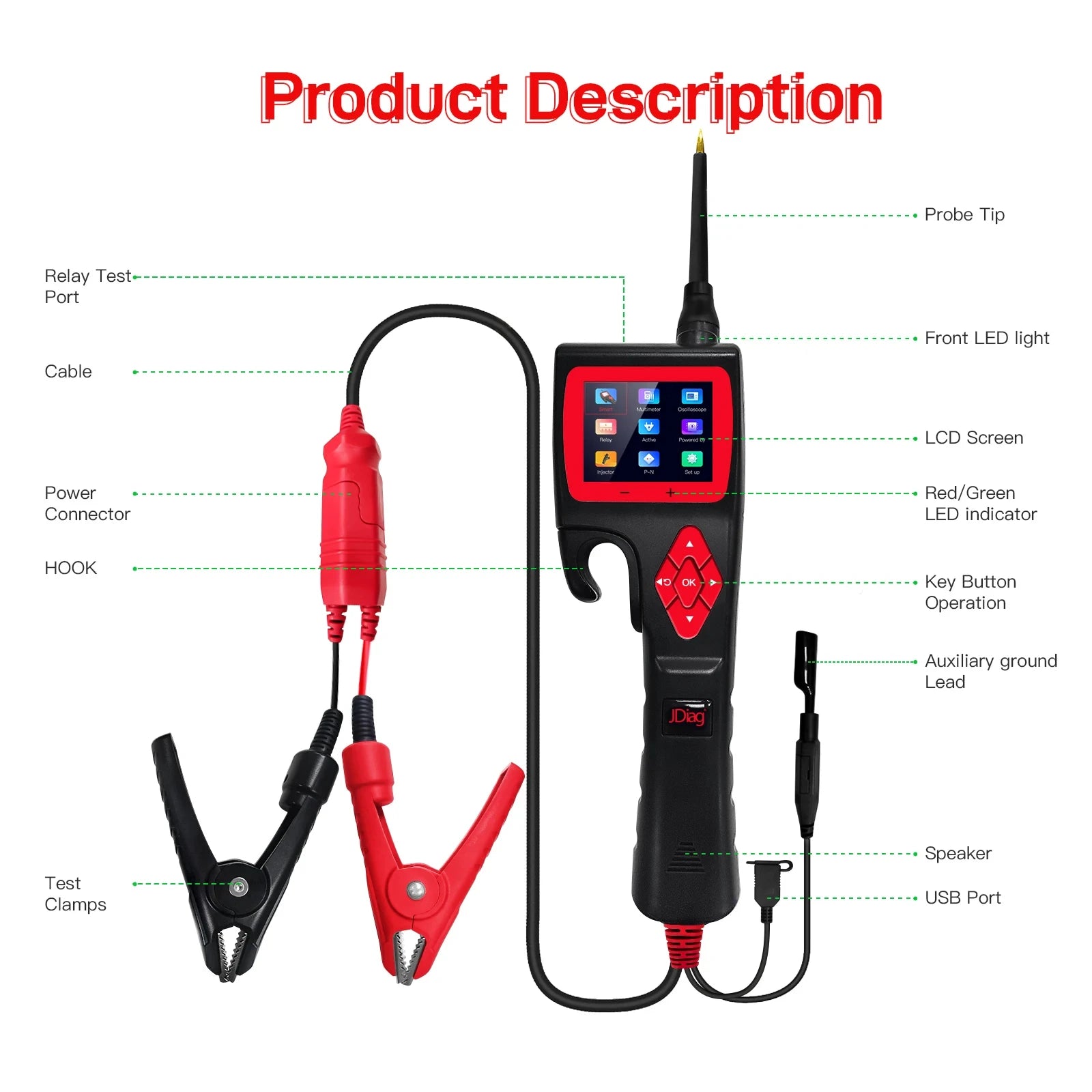

Product Description:

P200 SMART HOOK Powerful Probe new generation of intelligent circuit analyzer is the only one upgradeable circuit tester on the market. It is a tool for quickly testing all 9V-30V electronic systems. The test time is greatly shortened, convenient, fast and smarter!

Function:

1.Intelligent identification of voltage/resistance

2.Multimeter mode (measure voltage, resistance, diode, continuity, current and frequency)

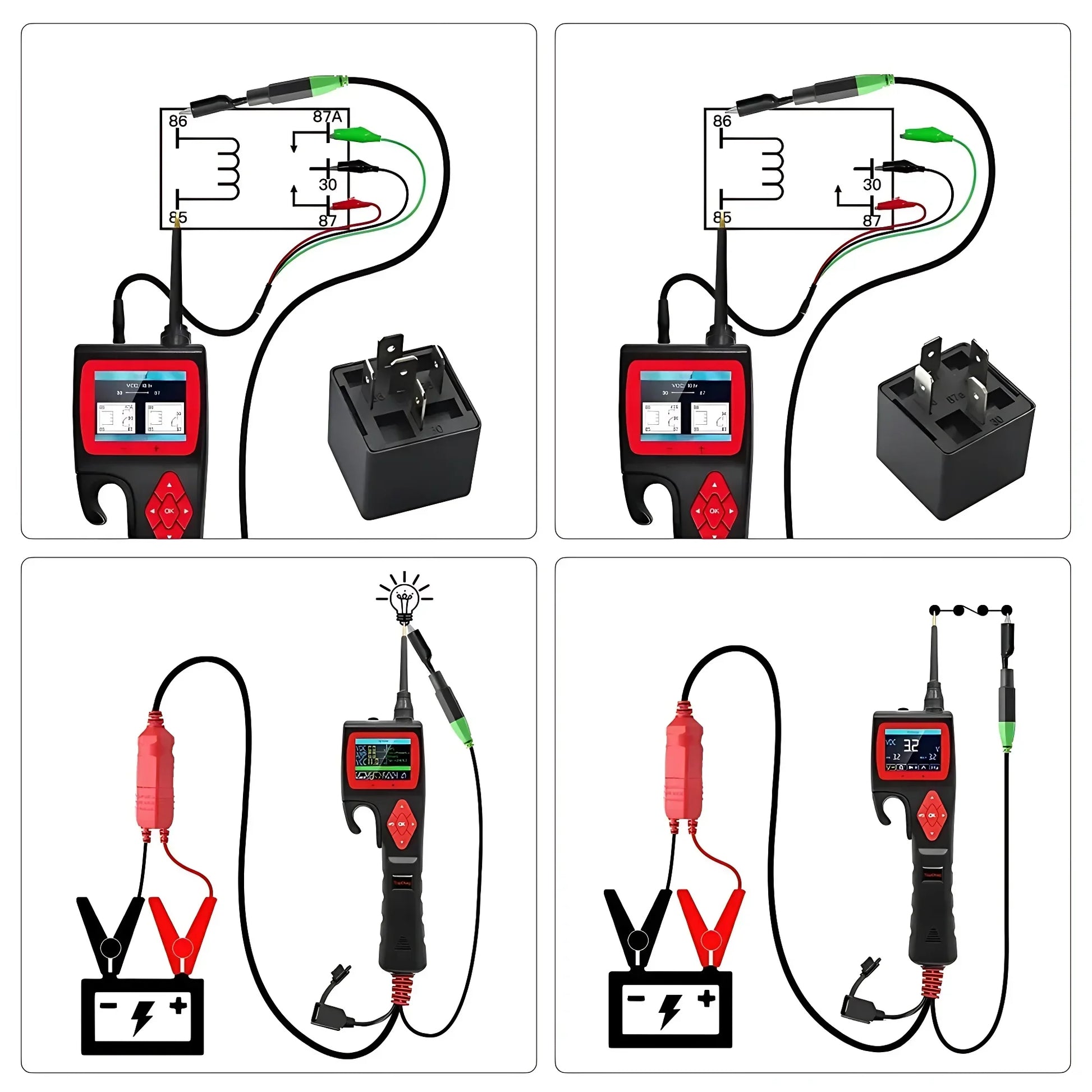

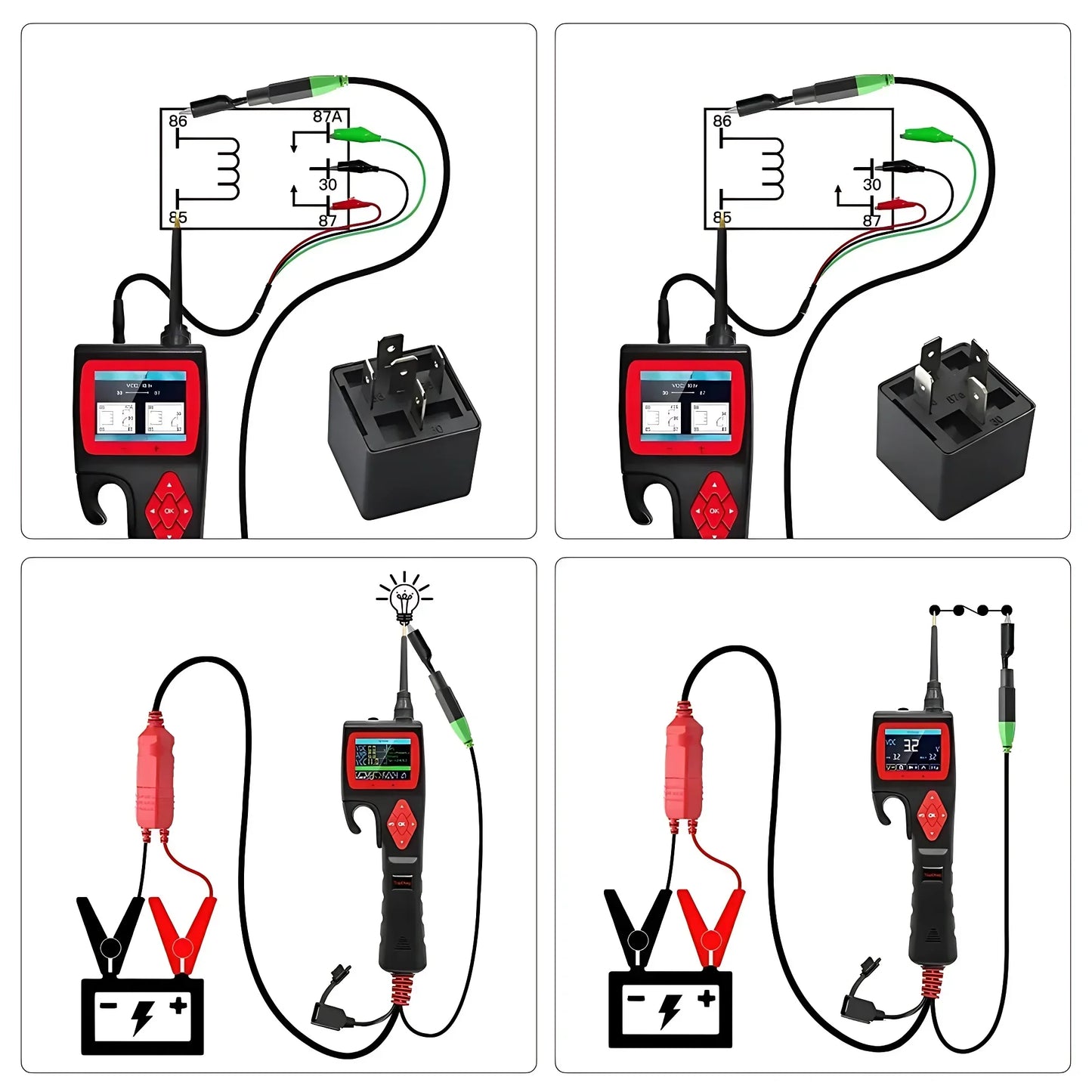

3.Relay test

4.Injector test

5.Diode test

6.Oscilloscope function

7.0-5V adjustable power supply

8. Activation of vehicle components

9.Positive and negative polarity test

10.Intelligent circuit breaker protection (adjustable overload)

11.Screen style background optional

12.Network online upgrade

13.Built-in Multi Lingual.

specifications:

1.Display:............ (320*240 DPI) TFT true color display

2.Working temperature: ........... 0-60°C (32-140 F°)

3.Storage temperature:...........40-70°C (-40-185 F°)

4.External power supply: ... 12V or 24V powered by battery

5.Minimum working voltage:...9V

6.Maximum working voltage: 30V

7.Maximum measuring voltage: 100V

8.Minimum measuring voltage: .....................0.1V

9.Resistance measurement range:... 1 ohm~200K ohm

10.Current measuring range: ..................... 0~18A

11.Maximum continuous current: ..................... 18A

Professional Multimeter Function:

Five Test Mode:

1.Voltage Test

2.Resistance Test

3.Diode/Continuity Test

4.Current Amps Test

5.Frequency/Duty Cycle Test

Support Language:

English, Spanish, German, French, Portuguese, Italian, Polish Vietnamese, Russian, Thai, Indonesian, Malay, Malay, Filipino Object Arabic.

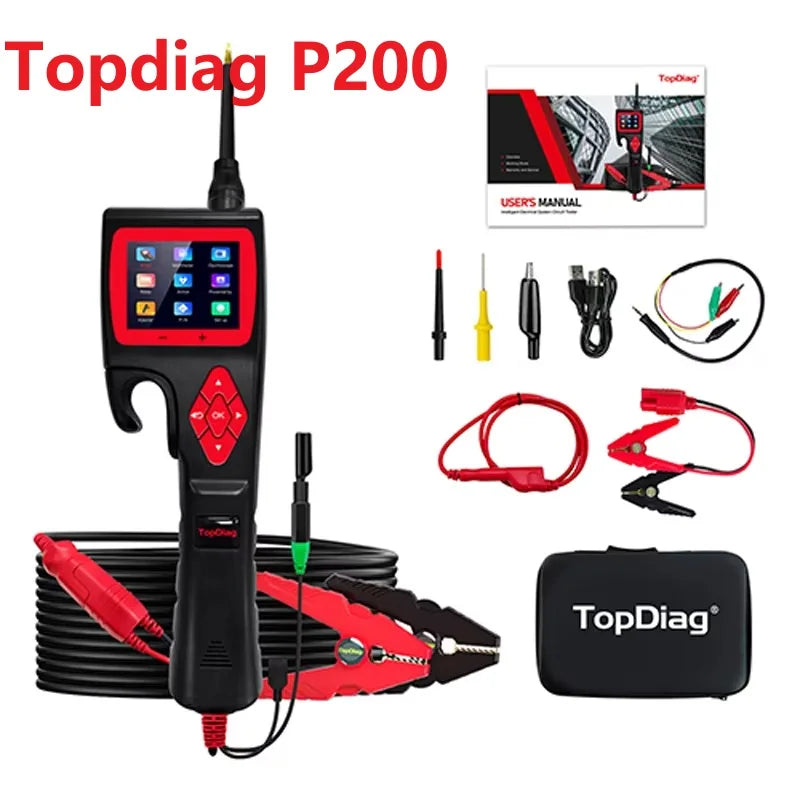

Product Packing List:
