SPECIFICATIONS

5 Holes Sensor Support: Fuel Level Gauge, Water Level Gauge

Brand Name: MAIMEIMI

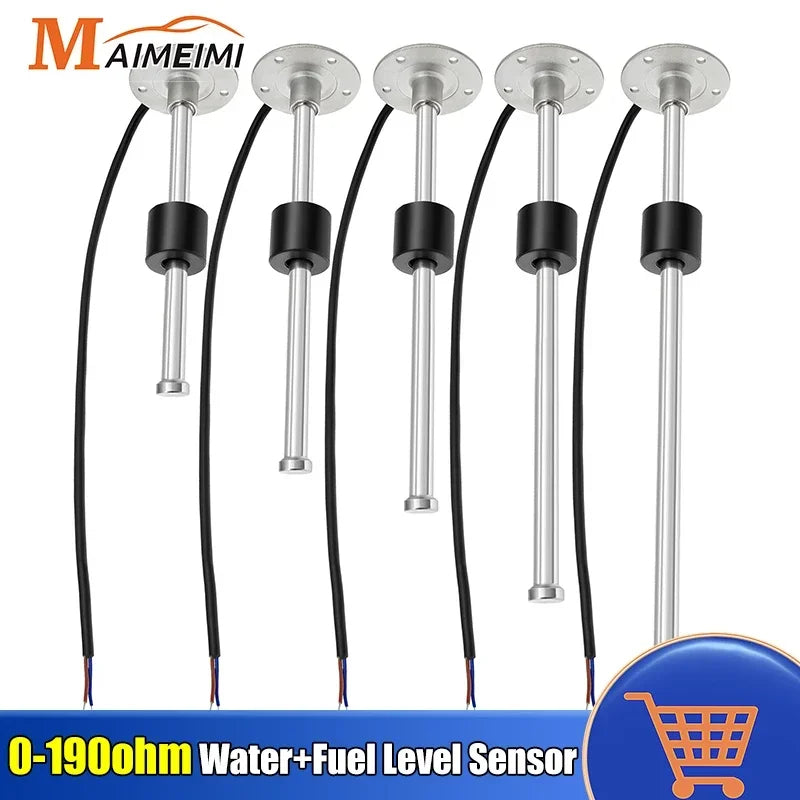

Fuel Guage Sensor Length Range: 100/125/175/225/275/325/375/425/475/500mm

Fuel Sending Unit: fuel gauge sending sensor

Fuel gauge sensor: water lever meter sender unit

Fuel sensor: for Fuel gauge

Hign-concerned Chemical: None

Interchange Part Number: Water Level Gauge

Manufacturer Part Number: fuel gauge sensor

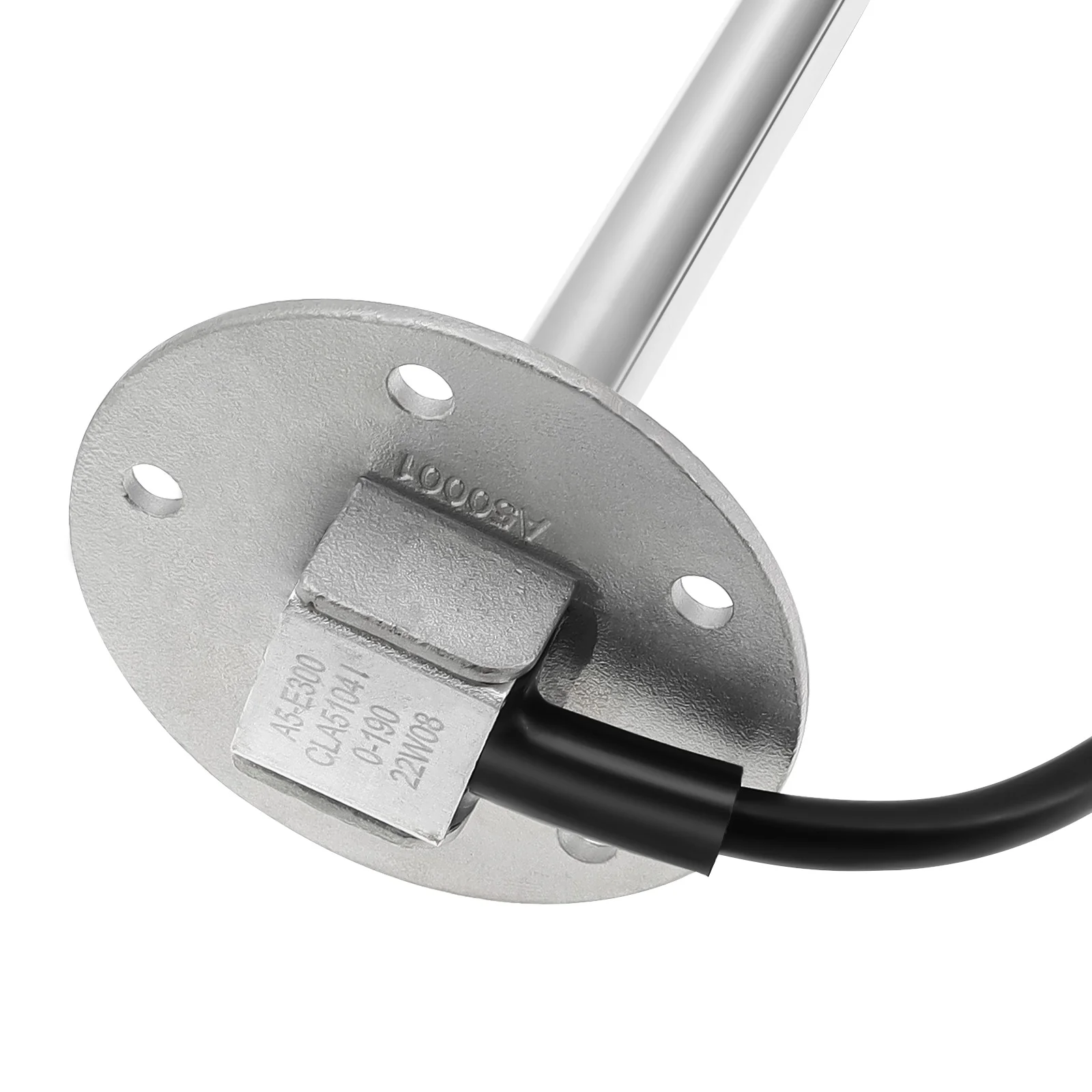

Material: Stainless Steel

Name: Fuel level sensor

OEM NO.: Oil Liquid Tank Fuel Level Sensor

Origin: Mainland China

Other Part Number: LEVEL SENSOR

Placement on Vehicle: Fuel Level Gauge Sensor

Signal: 0-190ohm

Special Features: Fuel Level Gauge Sensor

Water Liquid Meter: fuel flow meter

fuel level sensor: fuel meter

fuel sender: gasoline level sensor

Attention:

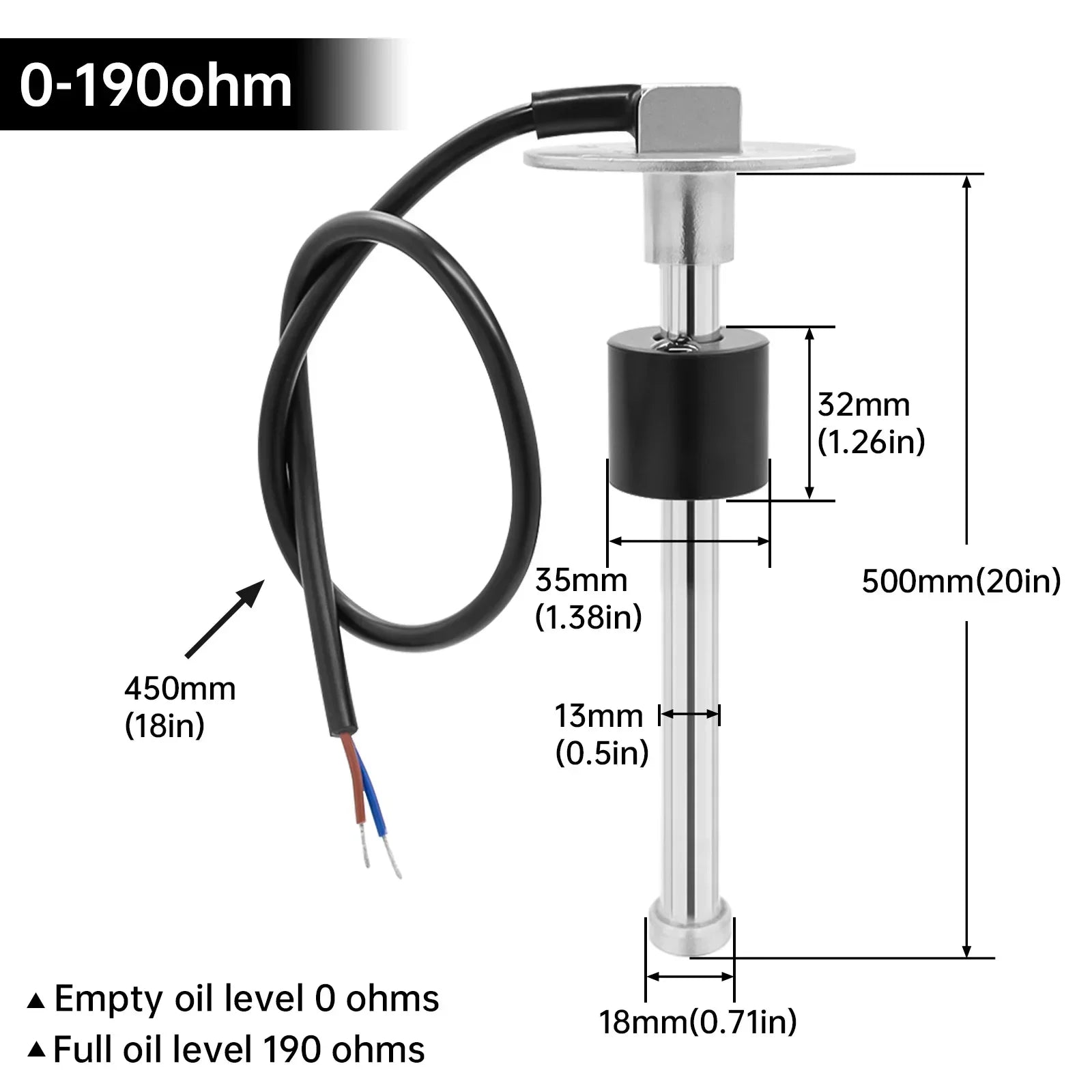

- Empty oil level : 0 ohm /
- Full oil level : 190 ohm

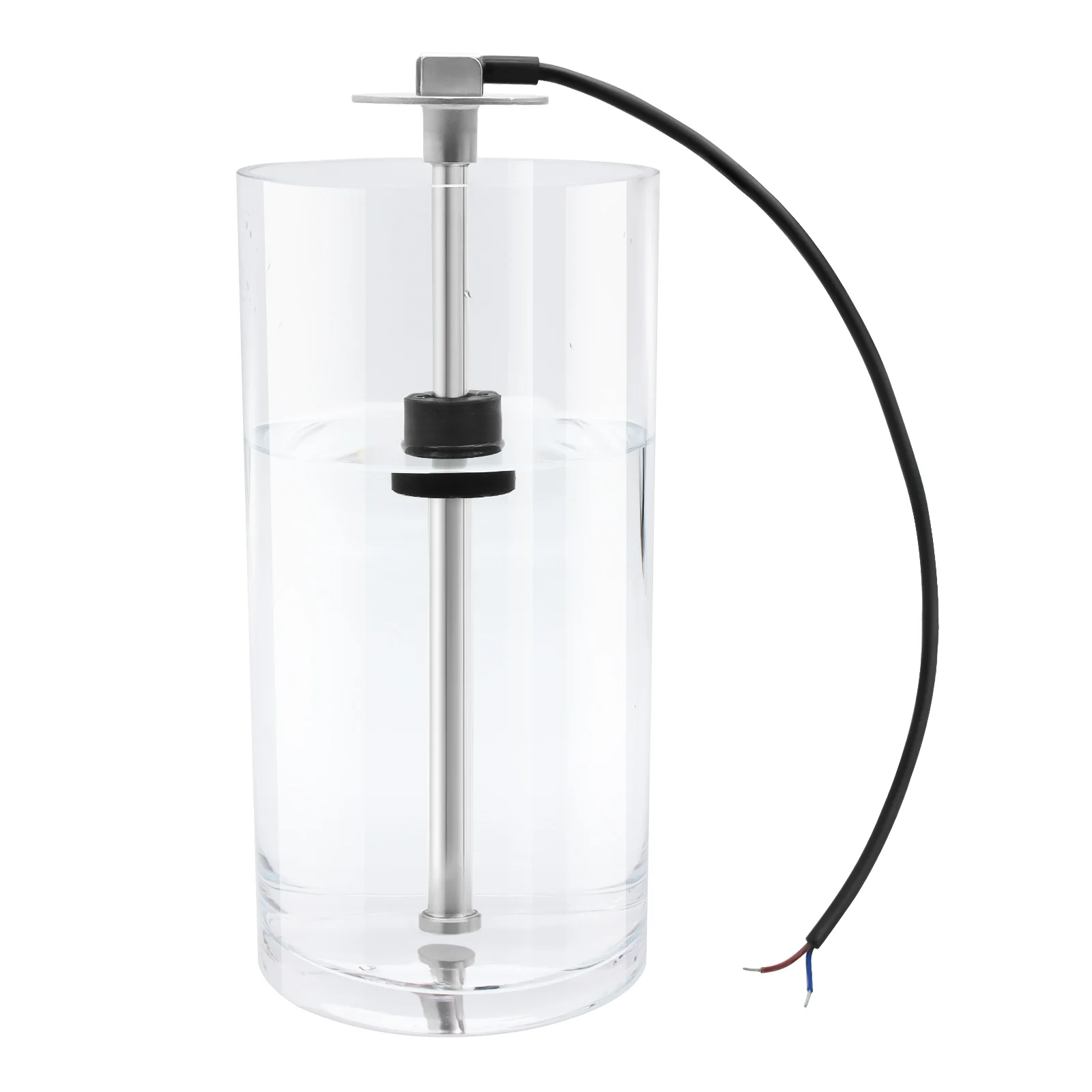

- When the oil / water level is empty , there will be a space of 3-15mm between the sensor float and the bottom of the sensor. This is a safe distance, and the sensor can work normally,Thank you~
- When the oil / water level is full, there will be a space of 3-15mm between the sensor float and the top of the sensor. This is a safe distance, and the sensor can work normally, Thank you~

Feature:

- Protection ank: IP67

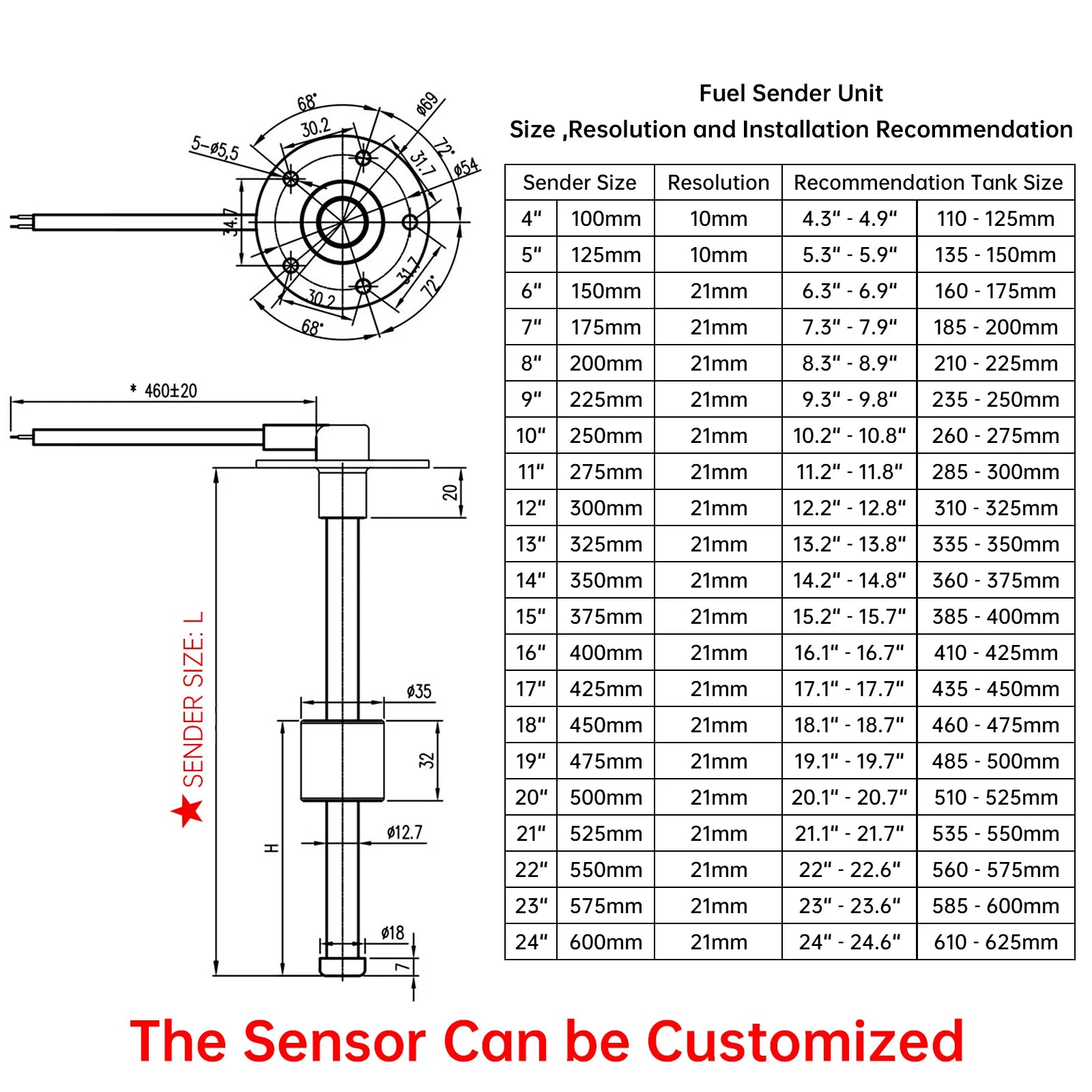

- Resolution range: 21 mm

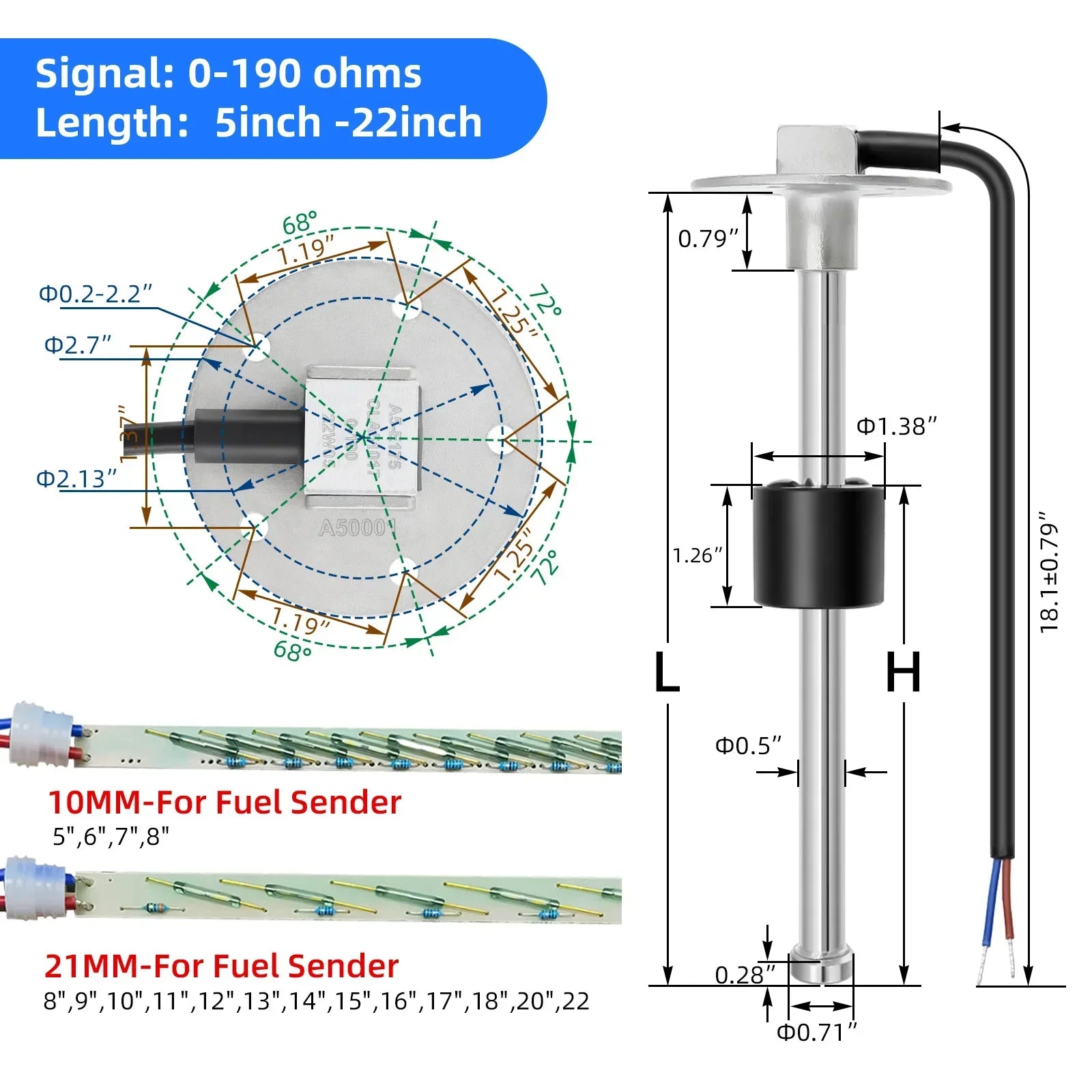

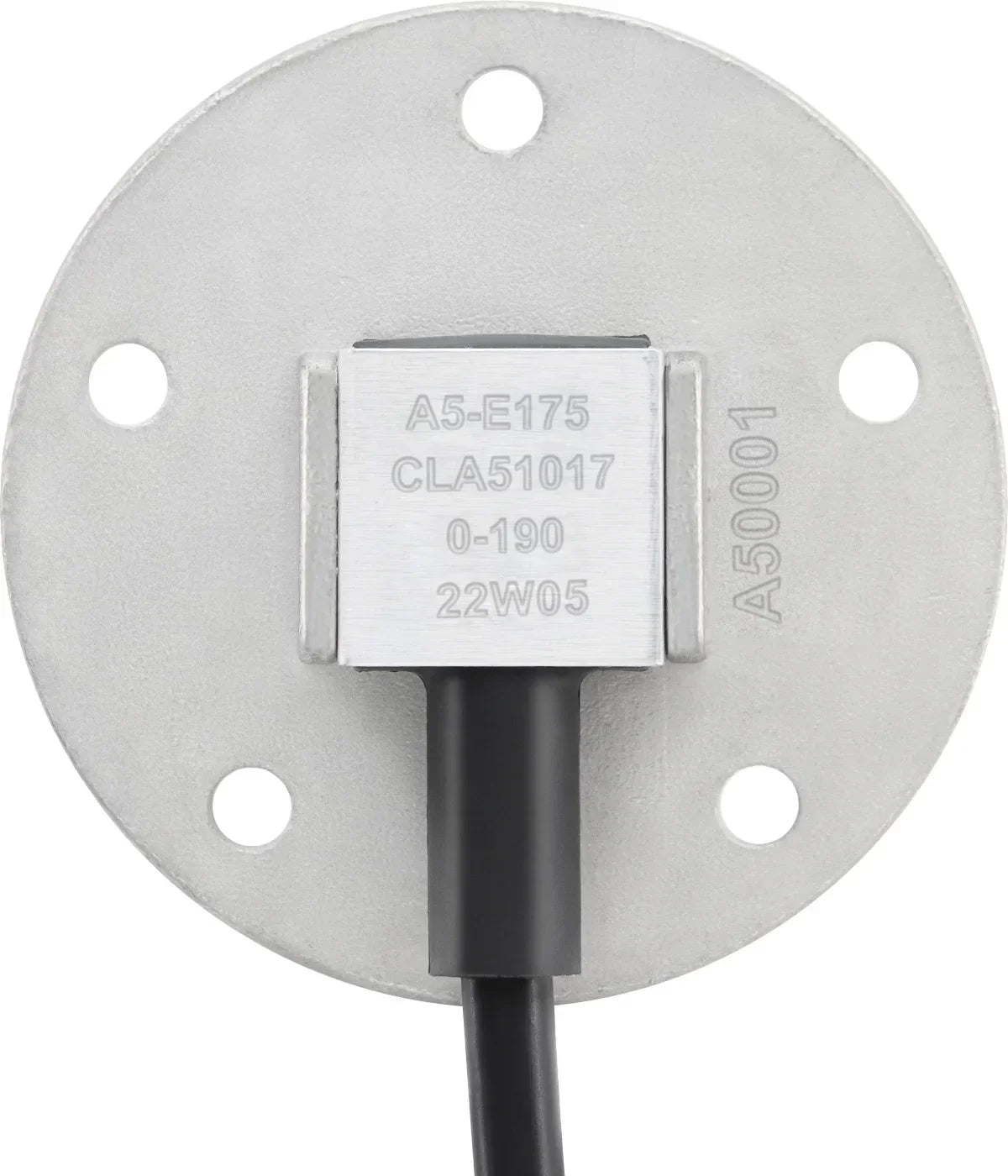

- Assembly: SAE standard 5 holes
- Rated current for alarm switch: 500mA
- Operating temperatures: - 40 to 85 Celsius
- Fit for Fuel Level Gauge and Water Level Gauge

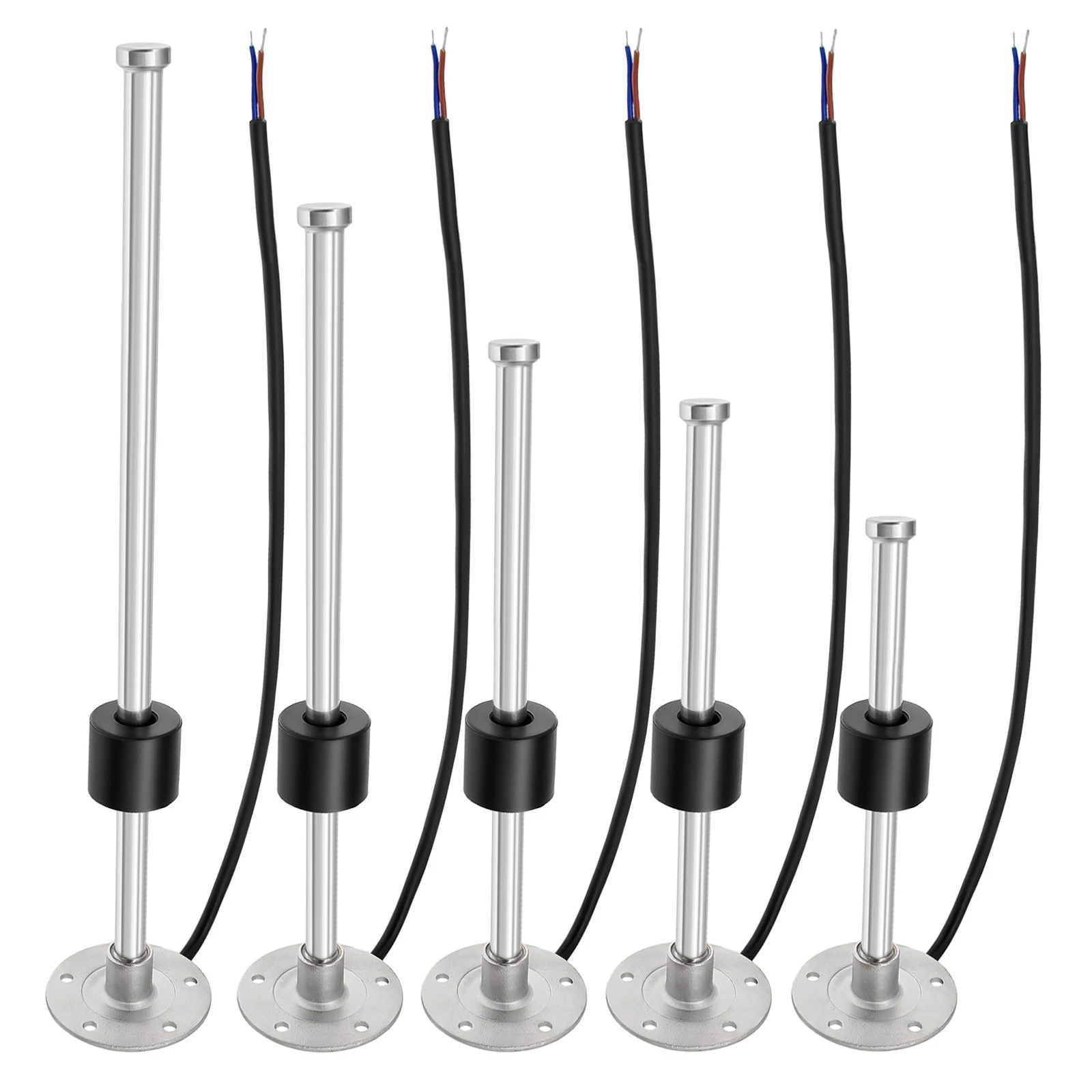

- Sensor Length :150mm, 200mm, 250mm, 300 mm ,350 mm ,400mm, 450 mm - Mounting: 5 pieces of M5 screws and 2 mm thick gasket
- Output signal: 0~190 ohm (Standard European),
fit for water /Fuel Level Gauge: 0-190ohm

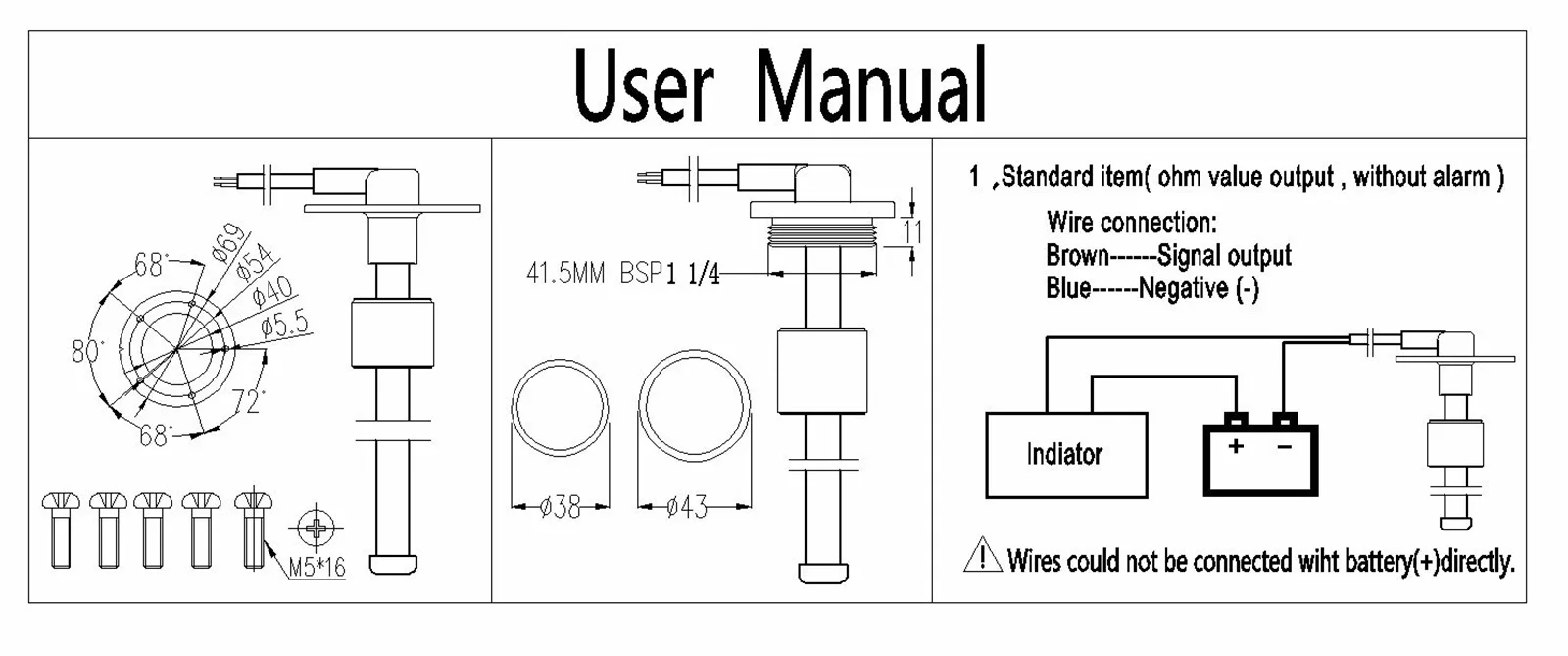

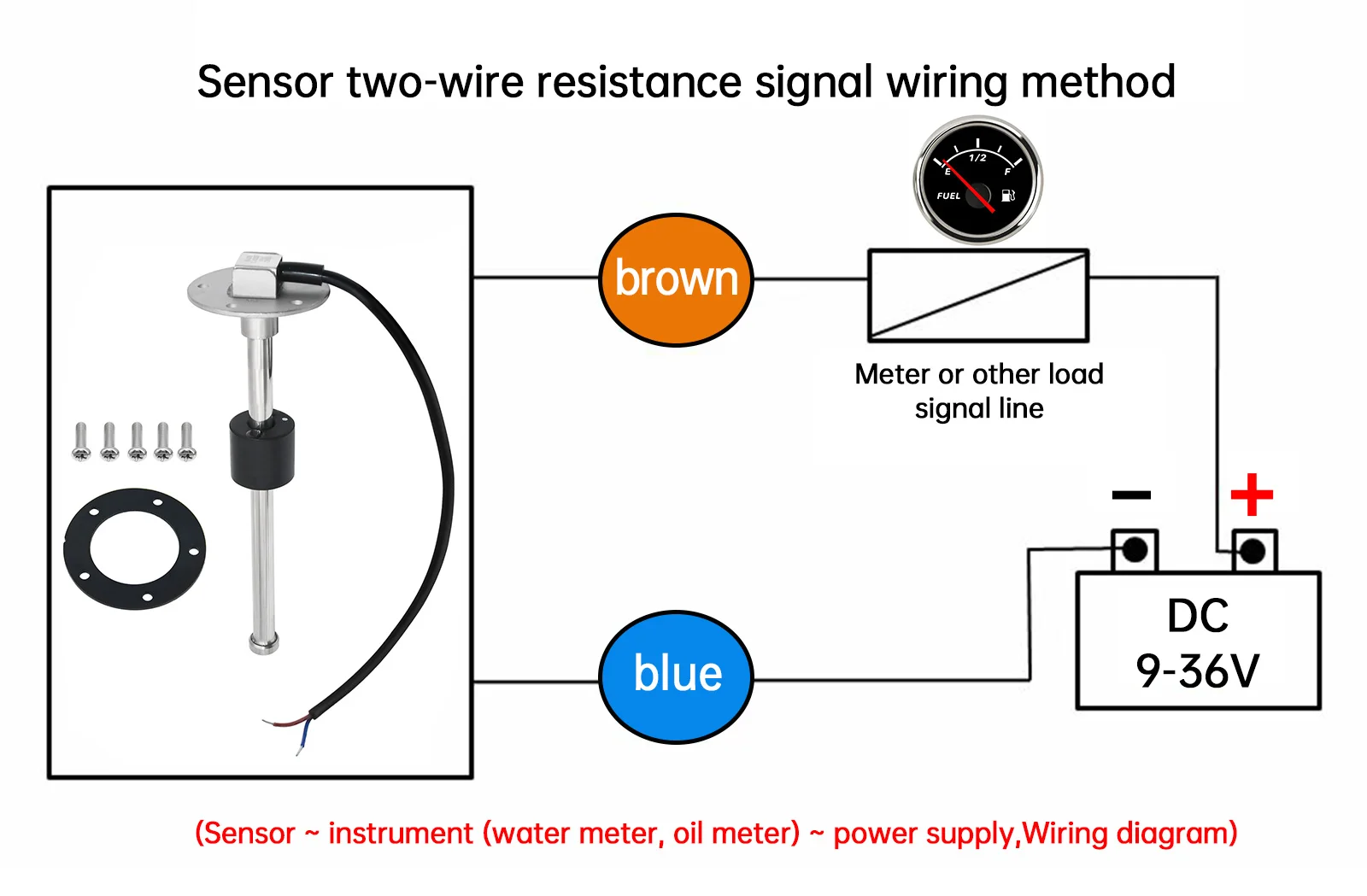

- the blue wire of sensor is connect the Ground line,
- the brown wire of sensor is connect the gauge

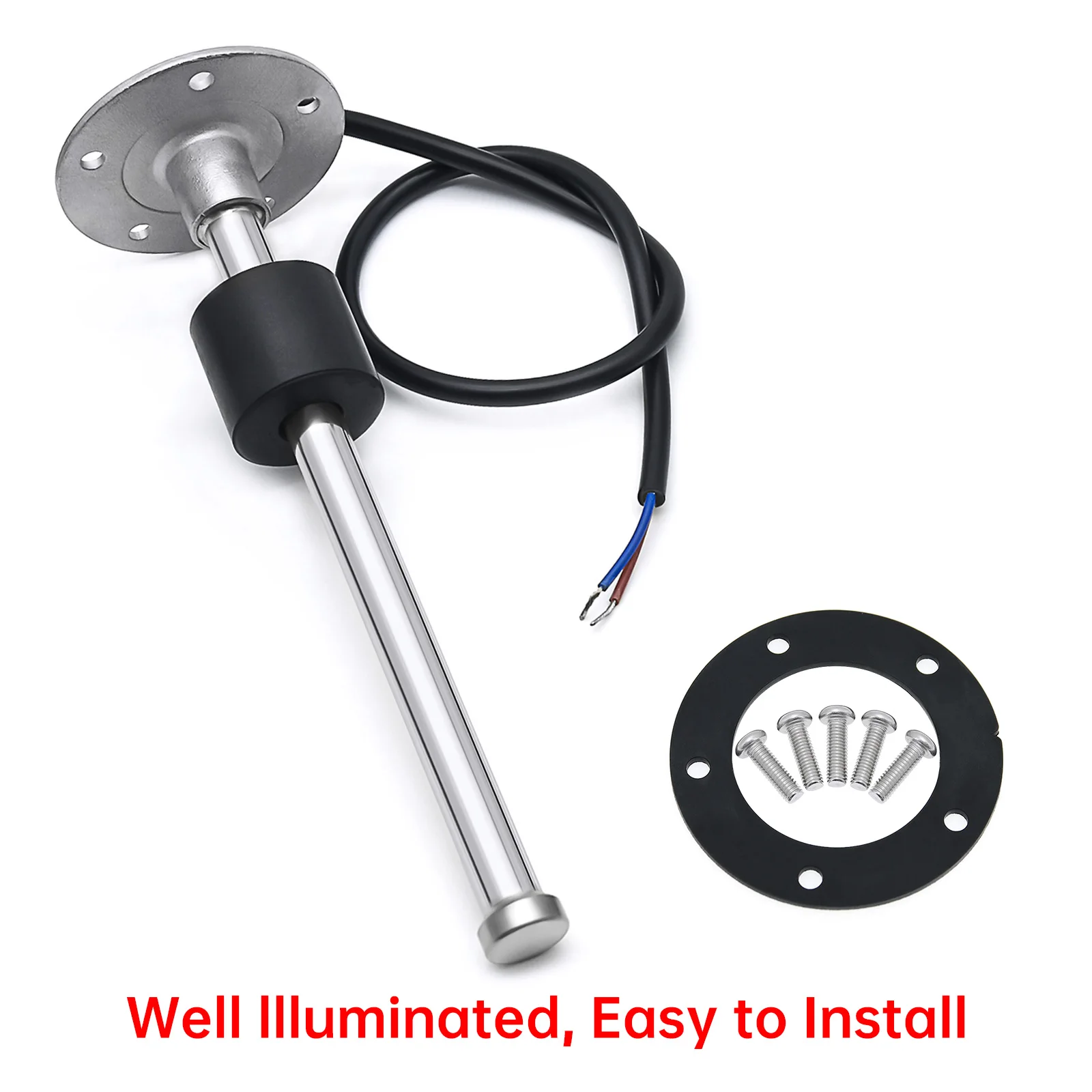

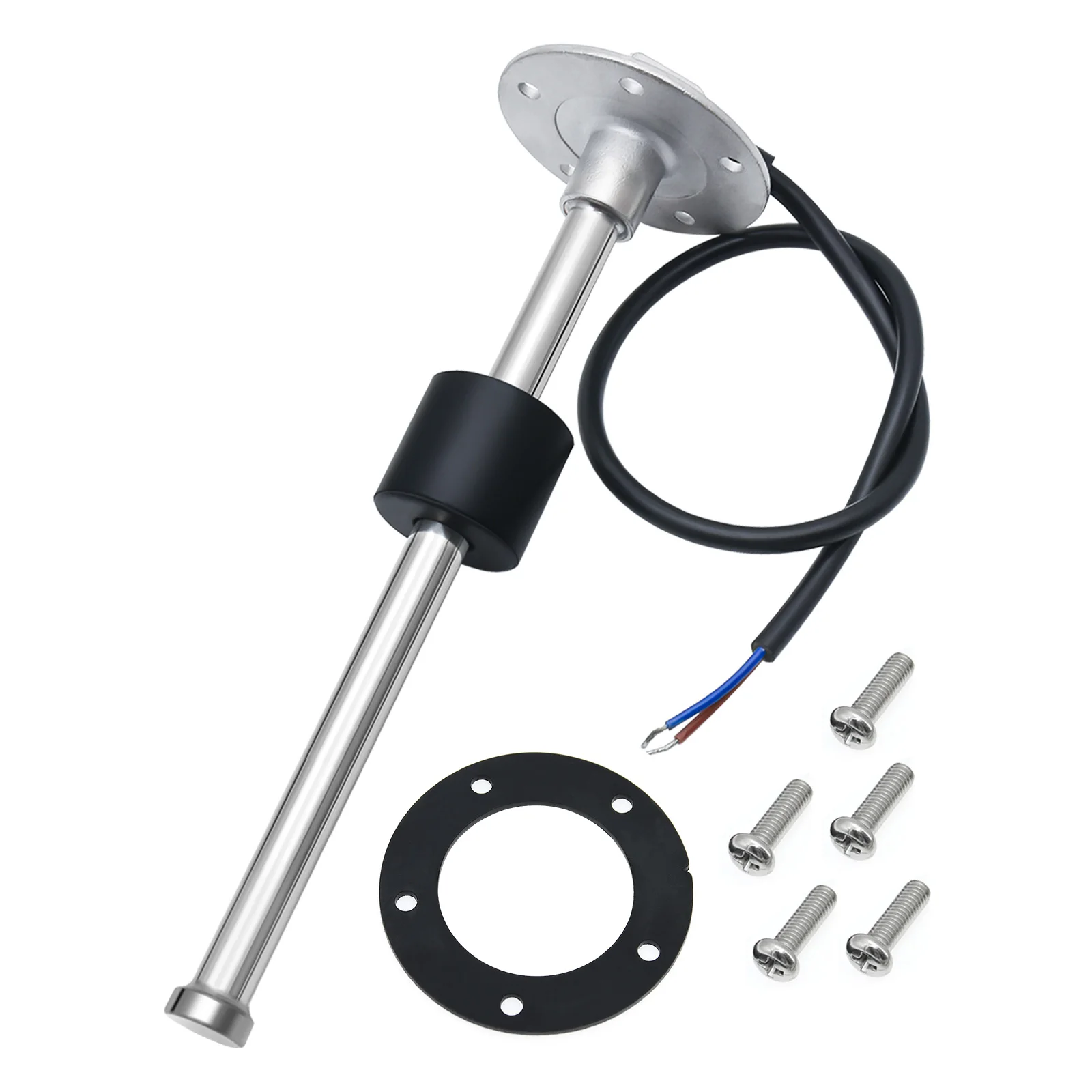

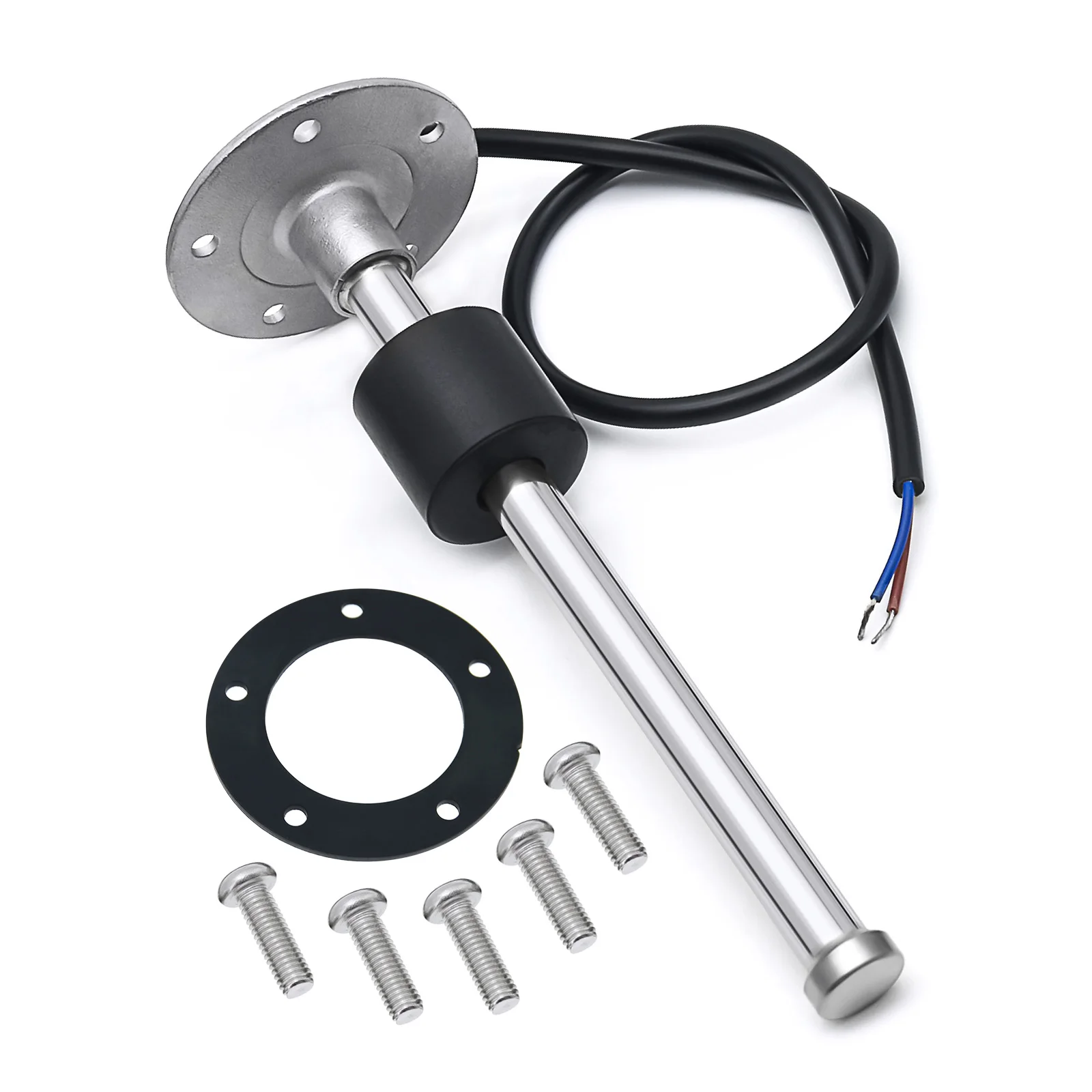

Package:

1 x Sensor
1 x Gasket 5 x Screws
